page 16
COMMERCIAL PRODUCTS DIVISION

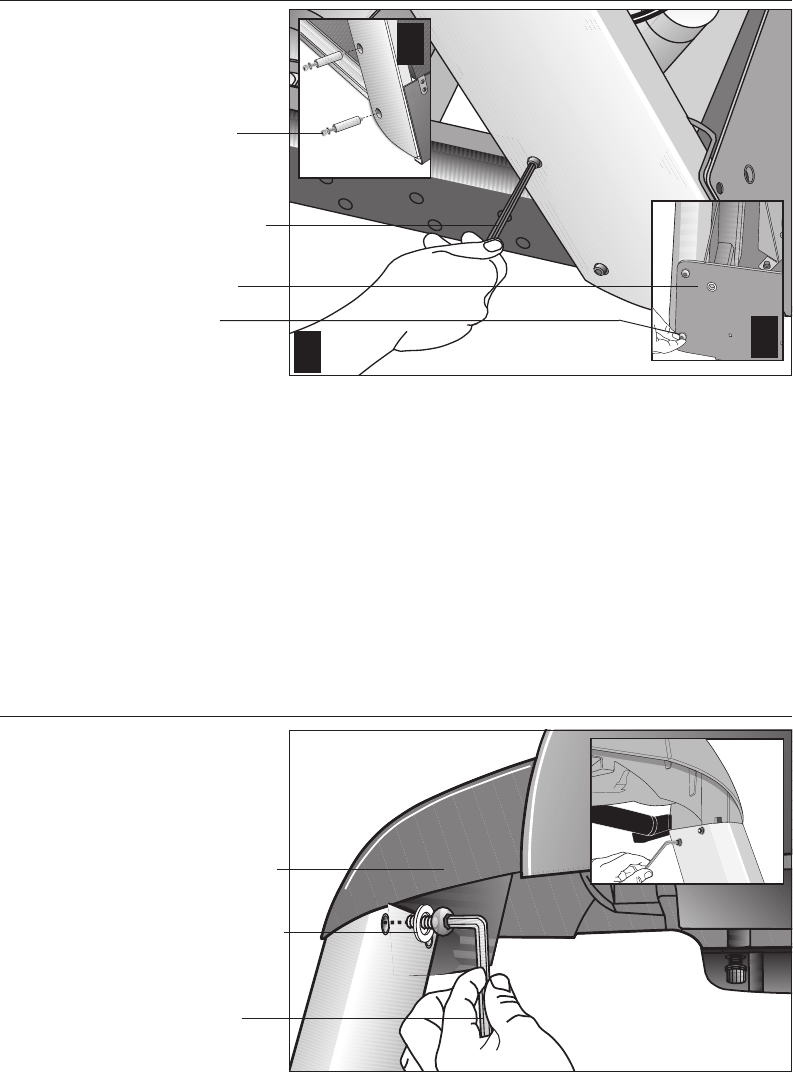

8. Secure the right side upright support. Diagram 11. Obtain two long
sockethead screws (D), washers (E) and barrel spacers (F) from the Hardware
kit. Place a washer and barrel sleeve on each bolt and insert the fasteners
through the side of the upright support and into the base mounts. Diagram 11,
#1. Secure the upright support using the ¼-inch hex key. See Diagram 11, #2.
Important: Do not securely tighten the screws until after the unit has been fully
assembled. Make sure that the bolt and spacer do not pinch the cable.
9. Remove two stainless steel washers (B) from the Hardware kit and place one on
each of the two bolts removed in step 7a. Reinsert the bolts and finger tighten.
Diagram 11, #3.
10. Secure the display console to the upright supports. Diagram 12, #1. Align
the display console with the right side upright support mounts. Insert two 1-inch
screws (A) with washers (B) and finger tighten. Use the supplied hex key to
secure the screws on both upright supports, but leave room for adjustments.
See inset in Diagram 12, #2.
Diagram 11
Secure the right
upright support.
Tighten so that
the upright is
secure, but
leave room for
adjustments.
Front panel
Diagram 12
Secure the
display console.
Tighten the
screws, but
leave room for
adjustments.
1-
inch screws (A)
with washers (B)
Display console
Screws (D),
washers (E),
and barrel
spacers (F)
1
2
3
Shipping
fasteners with
washers (B)
