Product Owner’s Manual: Maintenance 23

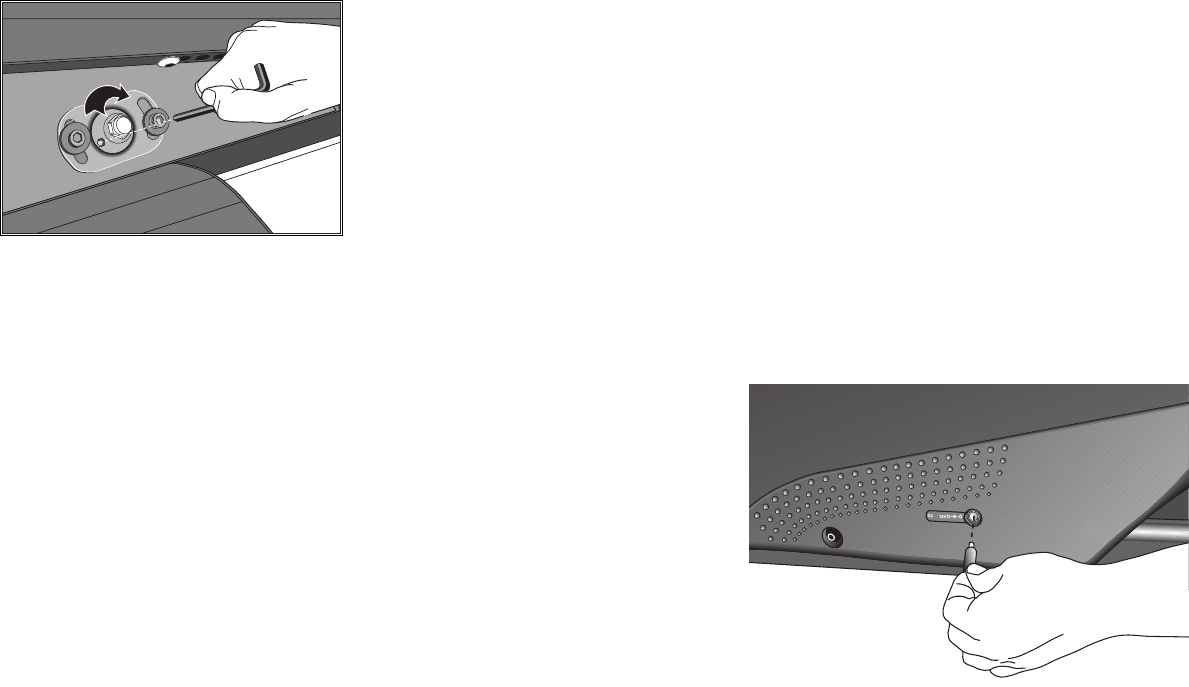

Diagram 12: Wheel lock adjustment
3. Use the ⁵⁄₁₆-inch hex key to turn the wheel lock adjustment key
clockwise ¼ turn. Refer to Diagram 12. This process realigns the
center wheel inside the top rail. Leave the ⁵⁄₁₆-inch hex key in
place while you tighten the adjustment screws with the ³⁄₁₆-inch
hex key.
4. Remove the hex keys and check that the seat no longer rocks
side-to-side. If the rocking movement continues, you need to
repeat steps 2 and 3.
Using the Optional Power Adapter
If you purchase the optional power adapter, you must also purchase
the internal cable kit. The kit supplies the cable, bracket, and
fasteners that connect the power adapter to the lower electronics
board.
CAUTION: The internal cable kit must be installed by authorized
service personnel. Do not attempt installation on your own as
you could void the Precor Limited Warranty. For more
information, refer to Obtaining Service.
Once the internal cable kit is installed, you can plug the optional
power adapter into the unit as shown in Diagram 13. Plug the
opposite end into the appropriate power source for your unit (110/
120v or 220/240v).
Important: When the optional power adapter is in use, ensure that
the power cord does not create a safety hazard. keep it out of the
way of traffic and moving parts. If the power cord or power adapter
is damaged it should be replaced.
Diagram 13: Optional power adapter receptacle
