Chapter 7 Card Provisioning
Provisioning Electrical Cards
7.2.1 DS-1 Card Parameters
The ONS 15454 DS-1 cards (DS1-14 and DS1N-14) provide 14 DS-1 ports. Each port operates at 1.544
Mbps. Default thresholds are based on recommendations in GR-820-CORE, Sections 4.0.
Procedure: Modify Line and Threshold Settings for the DS-1 Card
Step 1 Display the DS1-14 or DS1N-14 in CTC card view.
Step 2 Click the Provisioning tab (Figure 7-1).

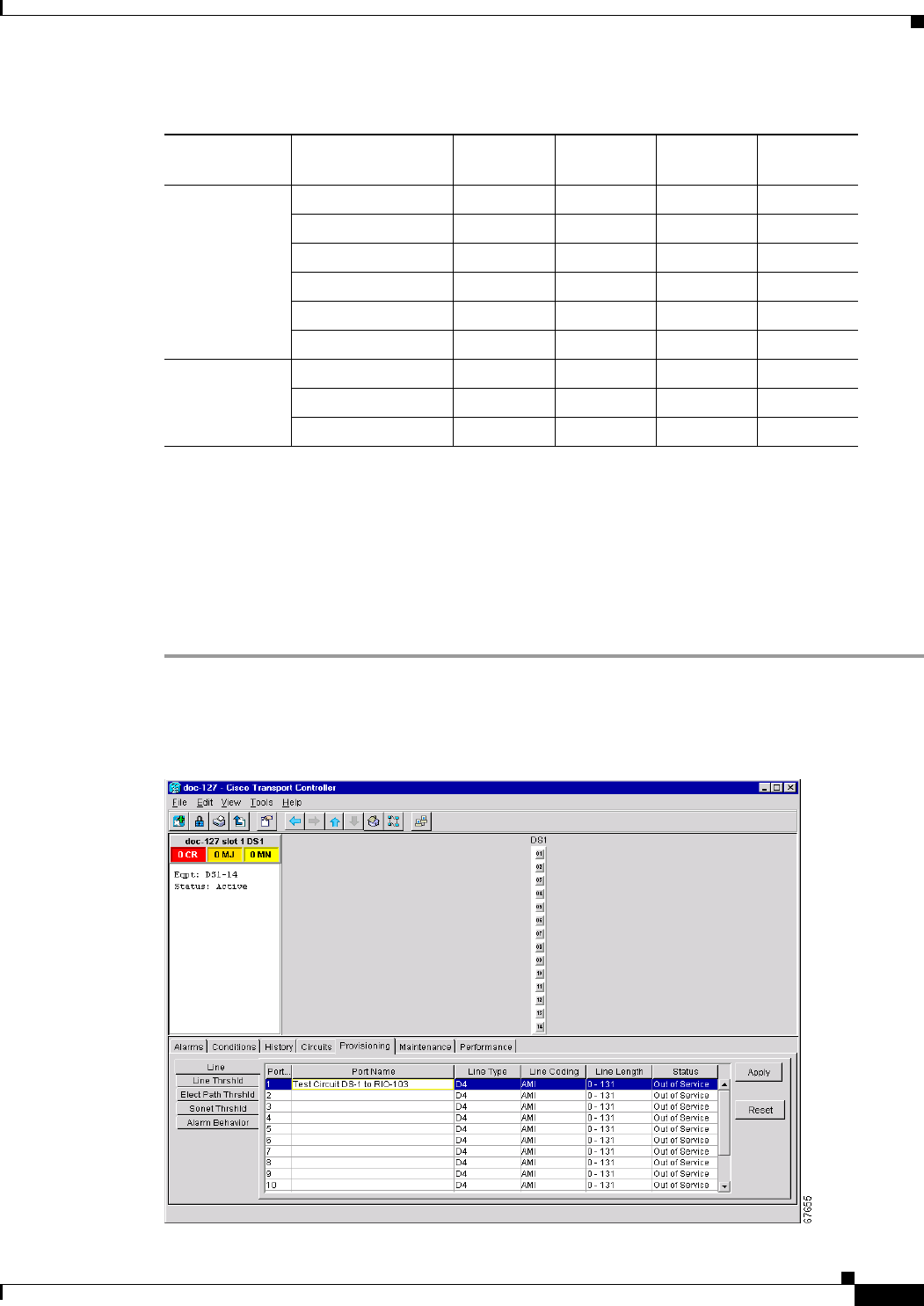

Figure 7-1 Provisioning line parameters on the DS1-14 card
SONET
Threshold
Port XXXX
CV XXXX
ES XXXX
FC XXXX
SES XXXX
UAS XXXX
Alarming
Port XXXX
Profile XXXX
Suppress AlarmsXXXX
Table 7-1 DS-N Card Provisioning Overview (continued)
Subtab Provisioning Item
DS1-14/
DS1N-14
DS3-12/
DS3N-12
DS3E1-12/
DS3EN-12 DS3XM-6
