Chapter 2 Software Installation
Working with the CTC Window

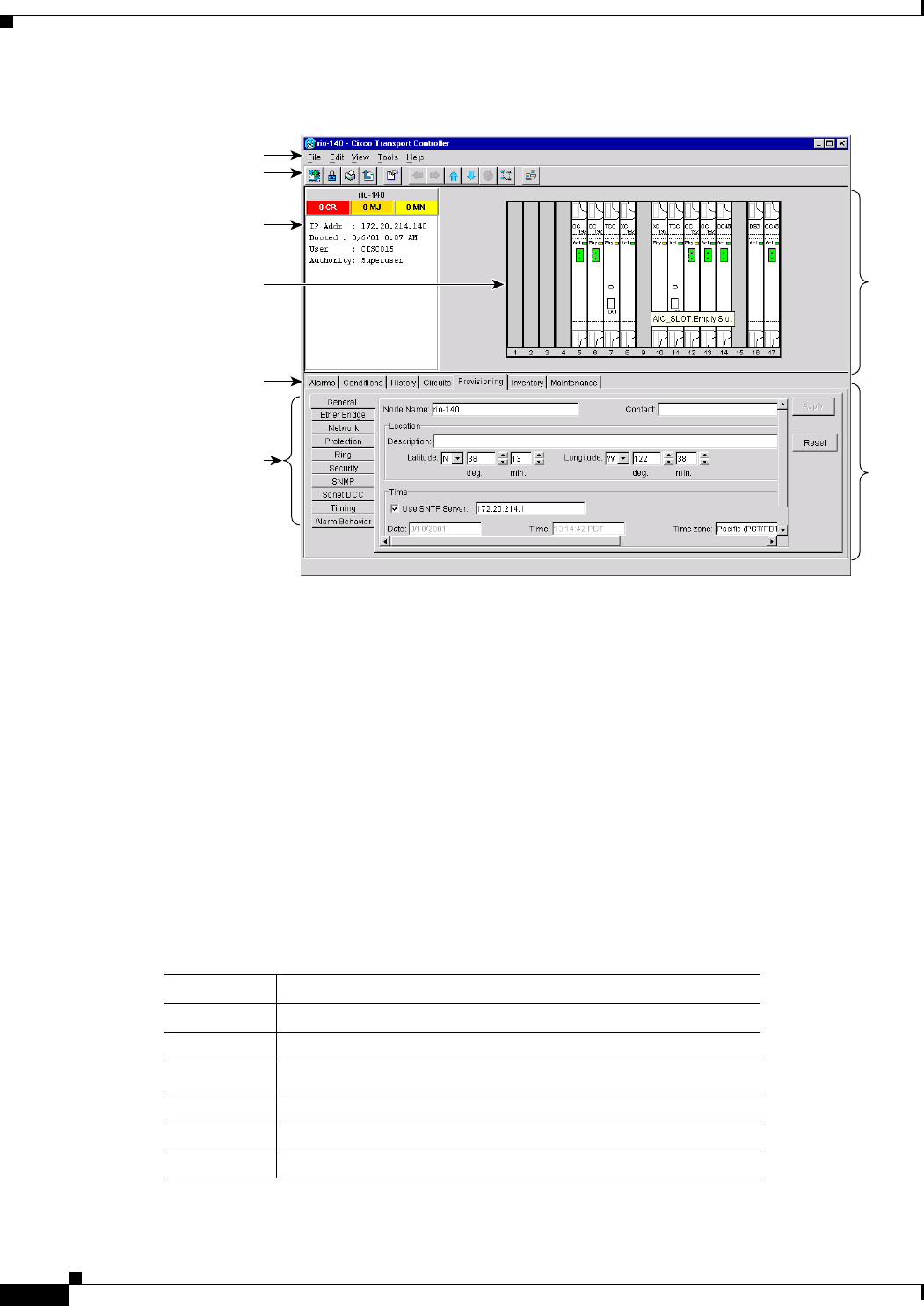

Figure 2-5 CTC window elements in the node view (default login view)
2.6.1 Node View
The CTC node view, shown in Figure 2-5, is the first view displayed after you log into an ONS 15454.
The login node is the first node displayed, and it is the “home view” for the session. Node view allows
you to view and manage one ONS 15454 node. The status area shows the node name, IP address, session
boot date and time, number of critical (CR), major (MJ), and minor (MN) alarms, the name of the current
logged-in user, and security level of the user.
2.6.1.1 CTC Card Colors
The graphic area of the CTC window depicts the ONS 15454 shelf assembly. The colors of the cards in
the graphic reflect the real-time status of the physical card and slot (Table 2-4).
Tool bar
Status area
Graphic area
Tabs
Subtabs
Menu bar
Top
pane
Bottom
pane
61867
Table 2-4 Node View Card Colors
Card Color Status
Grey Slot is not provisioned; no card is installed
Violet Slot is provisioned; no card is installed
White Slot is provisioned; a functioning card is installed
Yellow Slot is provisioned; a minor alarm condition exists
Orange Slot is provisioned; a major alarm condition exists
Red Slot is provisioned; a critical alarm exists
