1-62
Cisco ONS 15454 Installation and Operations Guide
November 2001
Chapter 1 Hardware Installation
Ferrite Installation

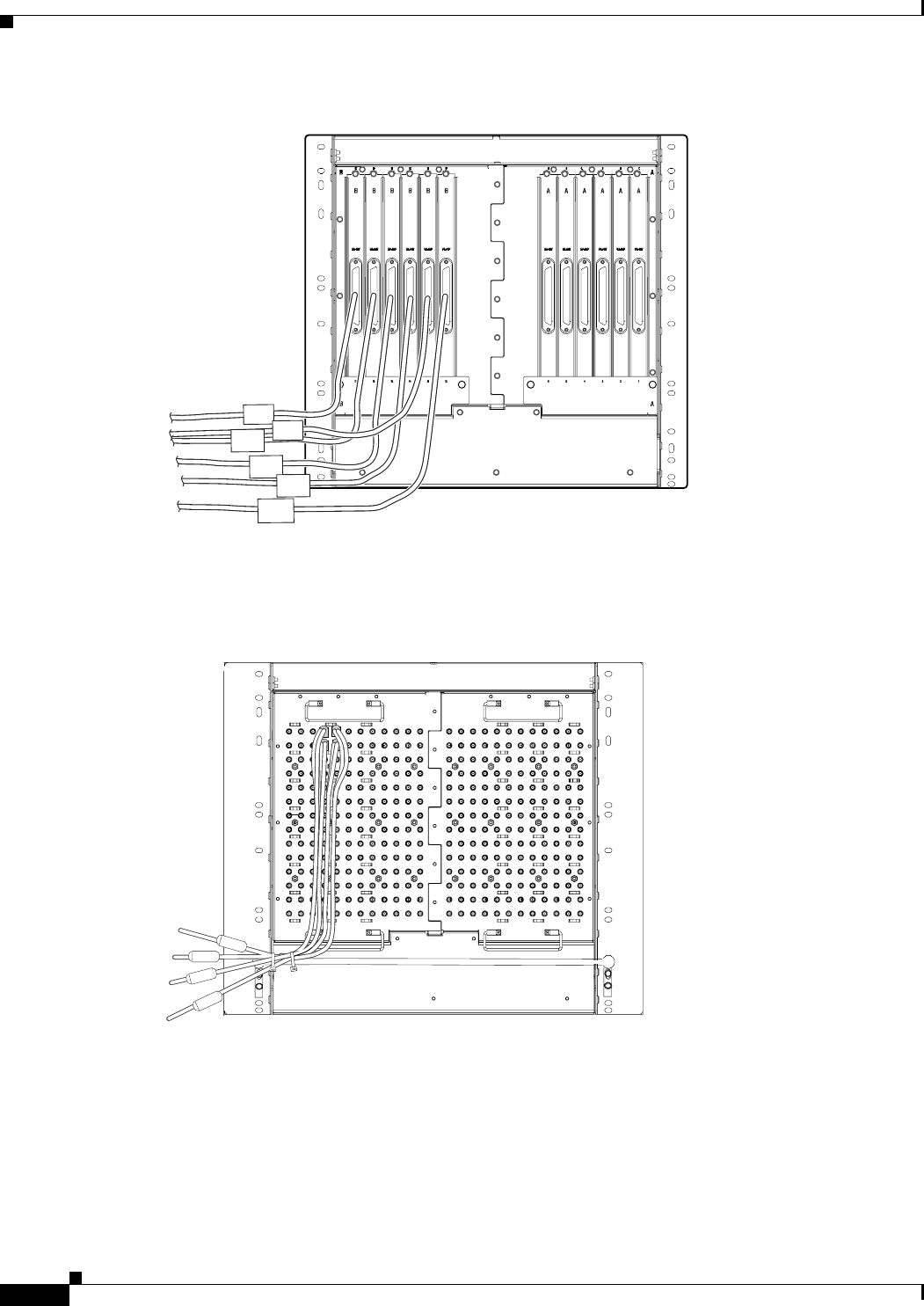

Figure 1-41 Attaching ferrites to AMP Champ connectors
Figure 1-42 shows the suggested method for attaching ferrites to baluns. Use an oval ferrite TDK ZCAT
1730-0730 for each cable.
Figure 1-42 Attaching ferrites to electrical interface adapters (baluns)
Figure 1-43 shows the suggested method for attaching ferrites to SMB/BNC connectors. Use an oval
ferrite TDK ZCAT1730-0730 for each cable and place the ferrite as close to the connector as possible.
32088
B
A
32090
