TL-WR710N 150Mbps Wireless N Mini Pocket Router
- 246 -
¾ Egress Bandwidth - The max and the min upload speed which through the WAN port,
default number is 0.
¾ Ingress Bandwidth - The max and the min download speed through the WAN port,
default number is 0.
Step 3: Click the Save button.
8.15 IP & MAC Binding

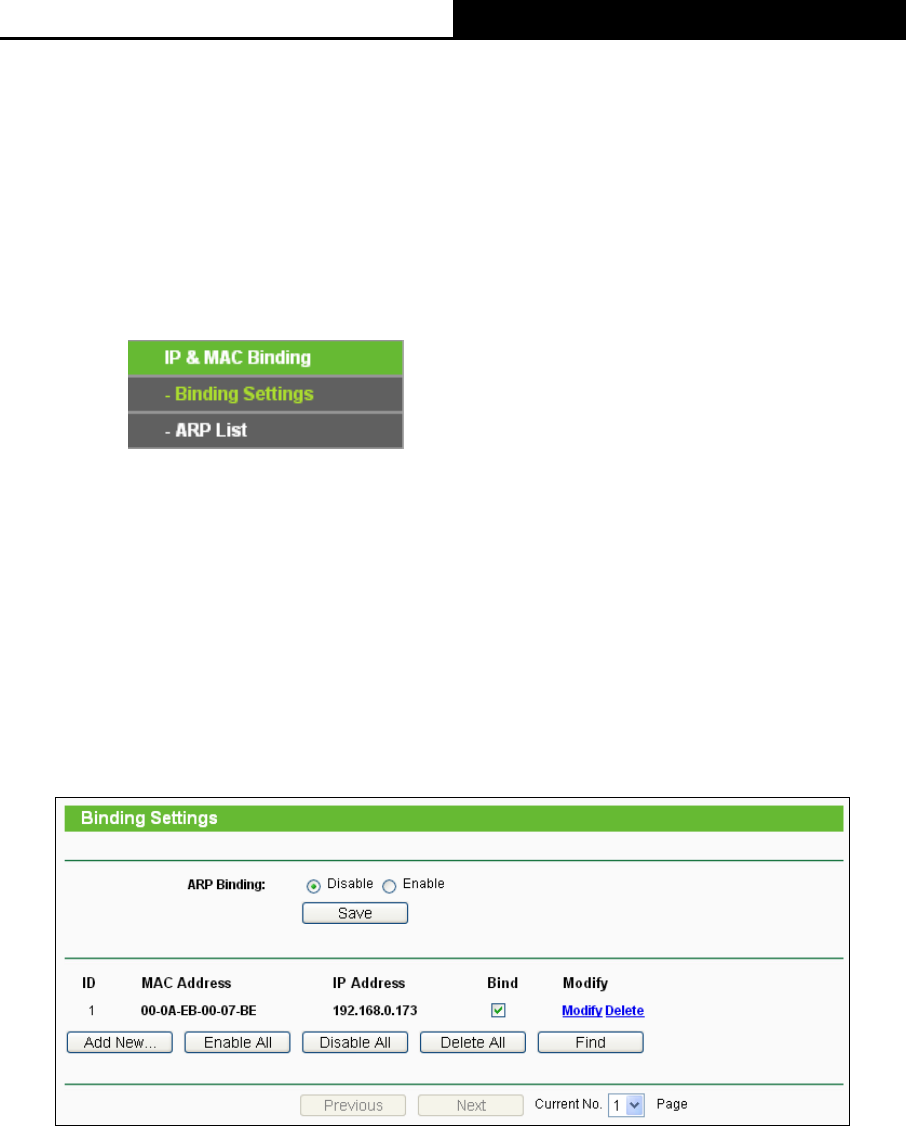

Figure 8-76 The IP & MAC Binding menu
There are two submenus under the IP & MAC Binding menu: Binding Setting and ARP List.
Click any of them, and you will be able to scan or configure the corresponding function. The
detailed explanations for each submenu are provided below.
8.15.1 Binding Setting
This page displays the IP & MAC Binding Setting table; you can operate it in accord with your
desire.
Figure 8-77 IP & MAC Binding Setting
¾ MAC Address - The MAC address of the controlled computer in the LAN.
¾ IP Address - The assigned IP address of the controlled computer in the LAN.
¾ Bind - Whether or not enable the ARP binding.
¾ Modify - Edit or delete item.
