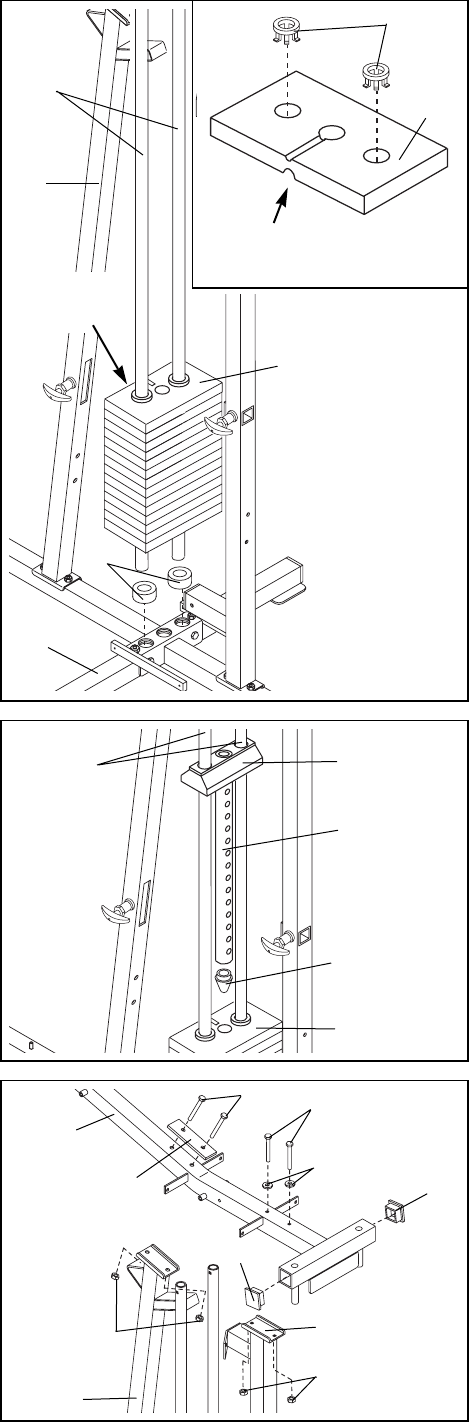

7. Position two Weight Bumpers (19) over the indicated
holes in the Stabilizer (5).
Insert both Weight Guides (23) through the Weight
Bumpers (19) and the holes in the Stabilizer (5).
See the inset drawing. Press two Round Weight
Inserts (76) into the indicated holes in each Weight
(26). Make sure the large pin groove is pointed
downward, as shown.
Slide all of the included Weights (26) onto the two
Weight Guides (23). Make sure the Weights are ori-
ented correctly. The holes must be turned
towards the Press Upright (3), as shown.
7
7
8. Press the Weight Tube Bumper (64) into the end of
the Weight Tube (77).
Lubricate the insides of the holes in the Top Weight
(16).
Slide the Weight Tube (77) with the pre-attached Top
Weight (16) onto the Weight Guides (23). The Weight
Tube will slide into the hole in the center of the
Weights (26).
8
9. Press a 2Ó Square Inner Cap (24) into each end of
the crossbar on the Top Frame (1).
Place the Top Frame (1) on top of the two Uprights (2)
and (3) in the direction shown. Align the holes in the
Top Frame with the holes in the brackets on the
Uprights.
Insert two 5/16Ó x 2 1/2Ó Bolts (45) with two 5/16Ó Flat
Washers (53) through the holes in the Top Frame (1)
and the bracket on the Butterfly Upright (2). Hand
tighten a 5/16Ó Nylon Locknut (68) unto each Bolt. Do
not tighten the Nylon Locknuts yet.
Insert two 5/16Ó x 2 3/4Ó Bolts (60) through the holes
in the Support Plate (52), through the Top Frame (1)
and the bracket on the Press Upright (3). Hand tight-
en a 5/16Ó Nylon Locknut (68) unto each Bolt. Do not
tighten the Nylon Locknuts yet.
9
5
23
23
3
26
19
16
77
26
64
60
45
53
24
24
2
68
3
52
1
68
76
26
Large Pin
Groove
Holes on
this side
