16

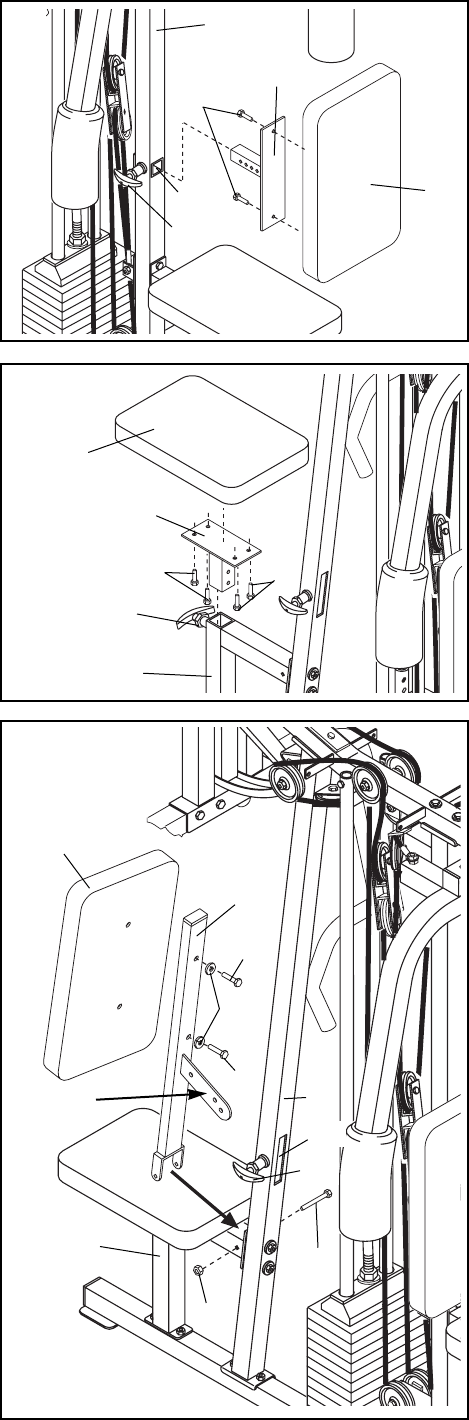

38. Attach one Backrest (41) to the Butterfly Backrest
Frame (15) with two 1/4Ó x 3/4Ó Screws (17).
Unscrew the handle on the Adjustment Knob (99)
until it is loose. Pull out the handle as far as it will go
and slide the Butterfly Backrest Frame (15) into the
slot in the Butterfly Upright (2). Release the handle
and let the Knob snap into one of the adjustment
holes on the Butterfly Backrest Frame. Tighten the
handle fully.
38
41
99
2
Slot
17
15
39. Attach one Seat (13) to the Press Seat Frame (36)
with four 1/4Ó x 3/4Ó Screws (17).
Unscrew the handle on the Adjustment Knob (99)
until it is loose. Pull out the handle as far as it will go
and slide the Press Seat Frame (36) into the slot in
the Press Seat Upright (37). Release the handle and
let the Knob snap into one of the adjustment holes on
the Press Seat Frame. Tighten the handle fully.
39
37
99
17
17
13
36
40. Attach one Backrest (41) to the Press Backrest
Frame (38) with two 1/4Ó x 1 3/4Ó Screws (49) and
two 1/4Ó Flat Washers (71).
Attach the Press Backrest Frame (38) to the indicated
hole in the Press Seat Upright (37) with a 3/8Ó x
2 3/4Ó Bolt (60) and a 3/8Ó Nylon Locknut (50). Do
not overtighten the Nylon Locknut; it must be
easy to pivot the Backrest Frame.
Unscrew the handle on the Long Adjustment Knob
(101) until it is loose. Pull out the handle as far as it
will go and slide the bracket on the Press Backrest
Frame (38) into the slot in the Press Upright (3).
Release the handle and let the Knob snap into one of
the adjustment holes in the bracket. Tighten the han-
dle fully.
40
49
18
50
38
37
Bracket
101
41
49
3
Slot
71
