11

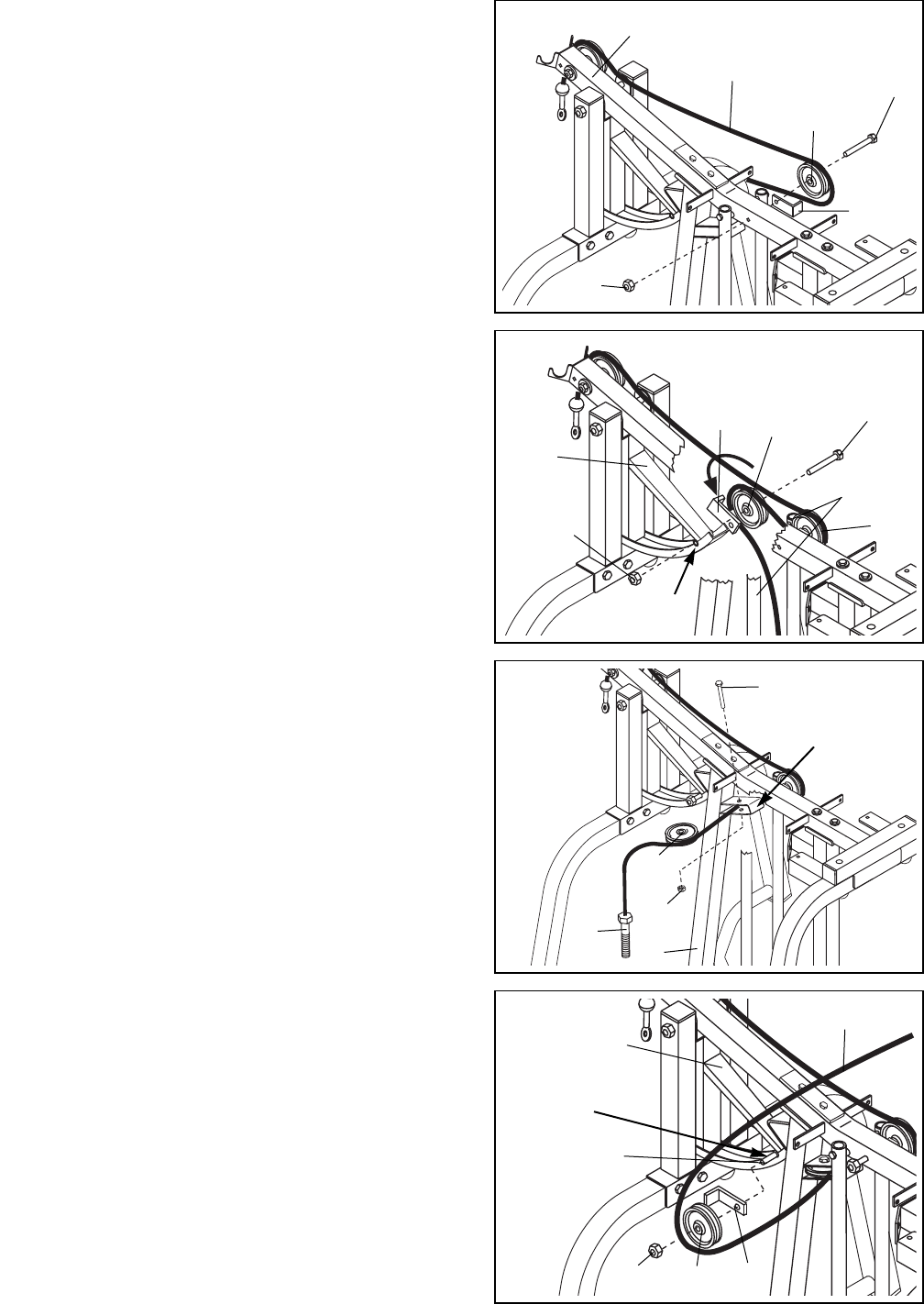

22. Remove the 3/8Ó Nylon Jamnut (78) attached to the
3/8Ó x 5Ó Bolt (42) in step 20. Wrap the High Cable
(73) around a 3 1/2Ó Pulley (35) in the direction
shown.
Slide the 3 1/2Ó Pulley (35) and a Cable Trap (44)
onto the 3/8Ó x 5Ó Bolt (42) that was inserted into the
welded tube on the Cable Frame (57) in step 20.
Secure the Pulley (35) and Cable Trap (44) with a
3/8Ó Nylon Jamnut (78). Note: Before you tighten
the 3/8Ó Nylon Jamnut, make sure the High Cable
(73) rests in the grooves of both of the Pulleys
(35) attached to the Cable Frame (57). Make sure
both Cable Traps (44) are oriented as shown in
this step and in step 20.
22
21. Feed the bolt at the end of the High Cable (73)
through the indicated bracket on the Press Upright (3)
from the direction shown.
Slide a 3 1/2Ó Pulley (35) into the bracket on the
Press Upright (3) and wrap the High Cable (73)
around the Pulley. The Cable must rest in the groove
of the Pulley.
Attach the 3 1/2Ó Pulley (35) to the bracket on the
Press Upright (3) with a 3/8Ó x 2Ó Bolt (62) and a 3/8Ó
Nylon Locknut (50).
21
20. Route the High Cable (73) in between the two Weight
Guides (23). Wrap the High Cable around a 3 1/2Ó
Pulley (35) in the direction shown.
Slide the 3 1/2Ó Pulley (35) onto a 3/8Ó x 5Ó Bolt (42).
Slide a Cable Trap (44) onto the Bolt. Slide the Bolt
into the welded tube on the Cable Frame (57).
Thread a 3/8Ó Nylon Jamnut (78) a couple of turns
onto the 3/8Ó x 5Ó Bolt (42) to prevent it from sliding
out during the following steps.
20
44
78
57
Welded
Tube
35
42
73
23
62
3
50
35
Bracket
Welded
Tube
57
42
73
73
19. Wrap the High Cable (73) around a 3 1/2Ó Pulley (35)
in the direction shown.
Slide the 3 1/2Ó Pulley (35) onto a 3/8Ó x 5Ó Bolt (42).
Slide a Cable Trap (44) onto the Bolt.
Slide the Bolt into the indicated hole in the Top Frame
(1). Thread a 3/8Ó Nylon Locknut (50) a couple of
turns onto the Bolt to prevent it from sliding out during
the following steps.
19
1
42
35
73
50
44
44
78
35
