Additional slack can be removed by moving one or both
of the 3 1/2Ó Pulleys (35) attached to one or both sets of
Pulley Plates (31).
To move one Pulley, unscrew the 3/8Ó Nylon Locknut (50)
and the 3/8Ó x 2Ó Bolt (62). Remove the Cable Trap (44)
and Pulley (35) from the Pulley Plates (31). Re-attach the
Pulley and Cable Trap to the appropriate adjustment hole
in the Pulley plates
Note: Begin by moving only one Pulley in one set of
Pulley Plates. If the Cables are still too loose. move
one more Pulley, and keep doing this until the Cables
are tight.
Note: If a Cable tends to slip off the Pulleys often, the
Cable may have become twisted. Remove the Cable
and re-install it.
If the Cables need to be replaced, see ORDERING
REPLACEMENT PARTS on the back cover of this manual.
Tightening the Cables
Woven cable, the type of cable used on the home gym
system, can stretch slightly when it is first used. If there is
slack in the Cables before resistance is felt, the Cables
should be tightened.
To tighten the Cables, insert the Weight Pin (39) between
the third and the fourth Weight, counting from the top.
See ÒChanging the Weight SettingÓ on page 20 for
instructions on moving the Weight Pin.
Loosen the 1/2Ó Plain Nut (40) securing the bolt at the
end of the High Cable (73). Tighten the bolt a couple of
turns into the Weight Tube (77) until the Cables feel
tighter. Tighten the Plain Nut to prevent the bolt from turn-
ing.

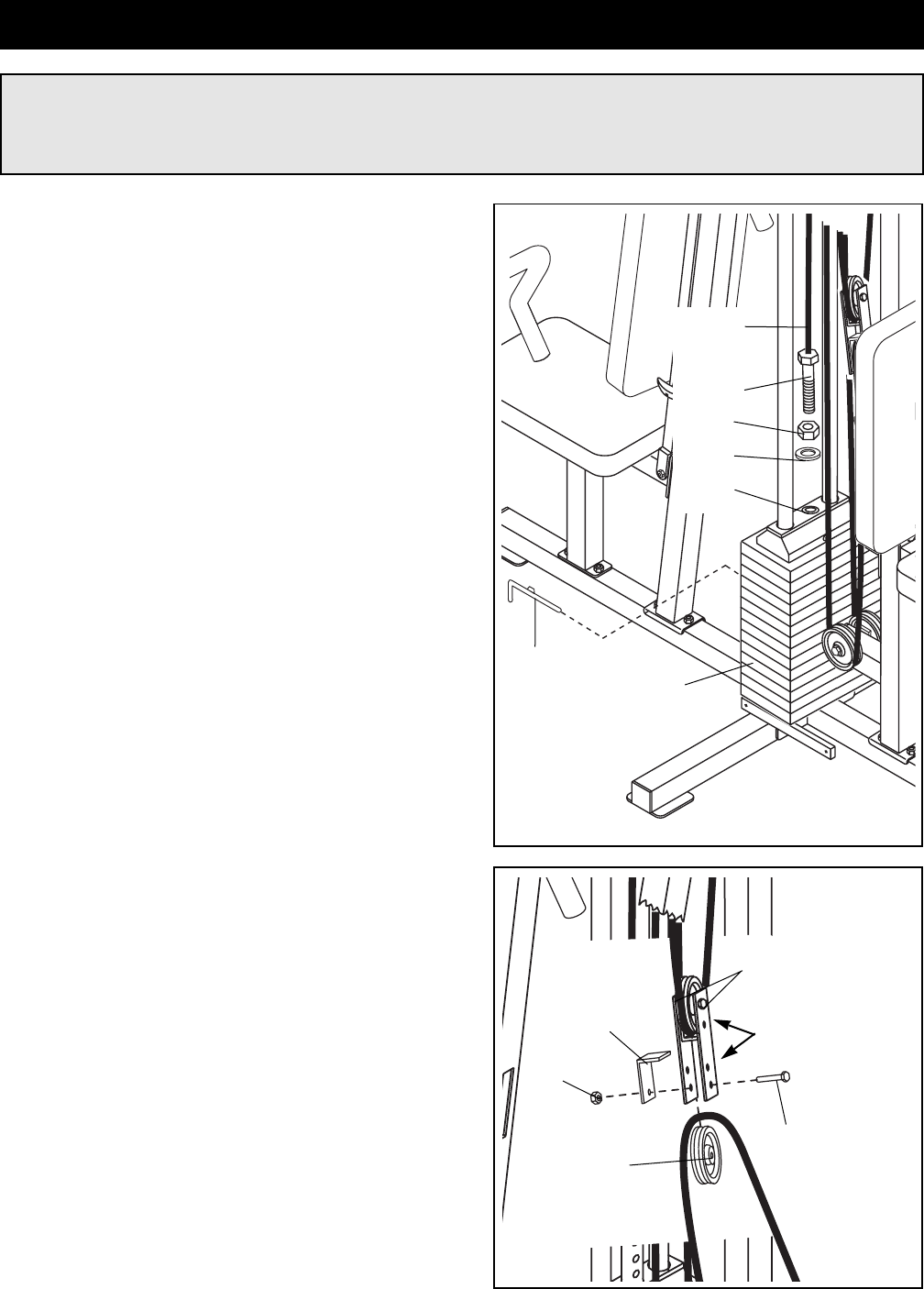

Note: This drawing shows the Shroud removed for clarity.
The Shroud does not have to be removed to tighten the
Cables.
31
Adjustment Holes
35
62
50
44
1
Trouble-shooting and Maintenance
Inspect and tighten all parts each time you use the home gym system. Replace any worn parts
immediately. The home gym system can be cleaned using a damp cloth and mild non-abrasive
detergent. Do not use solvents.
36
26
39
73
Bolt
40
100
77
