FIGURE 17
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2

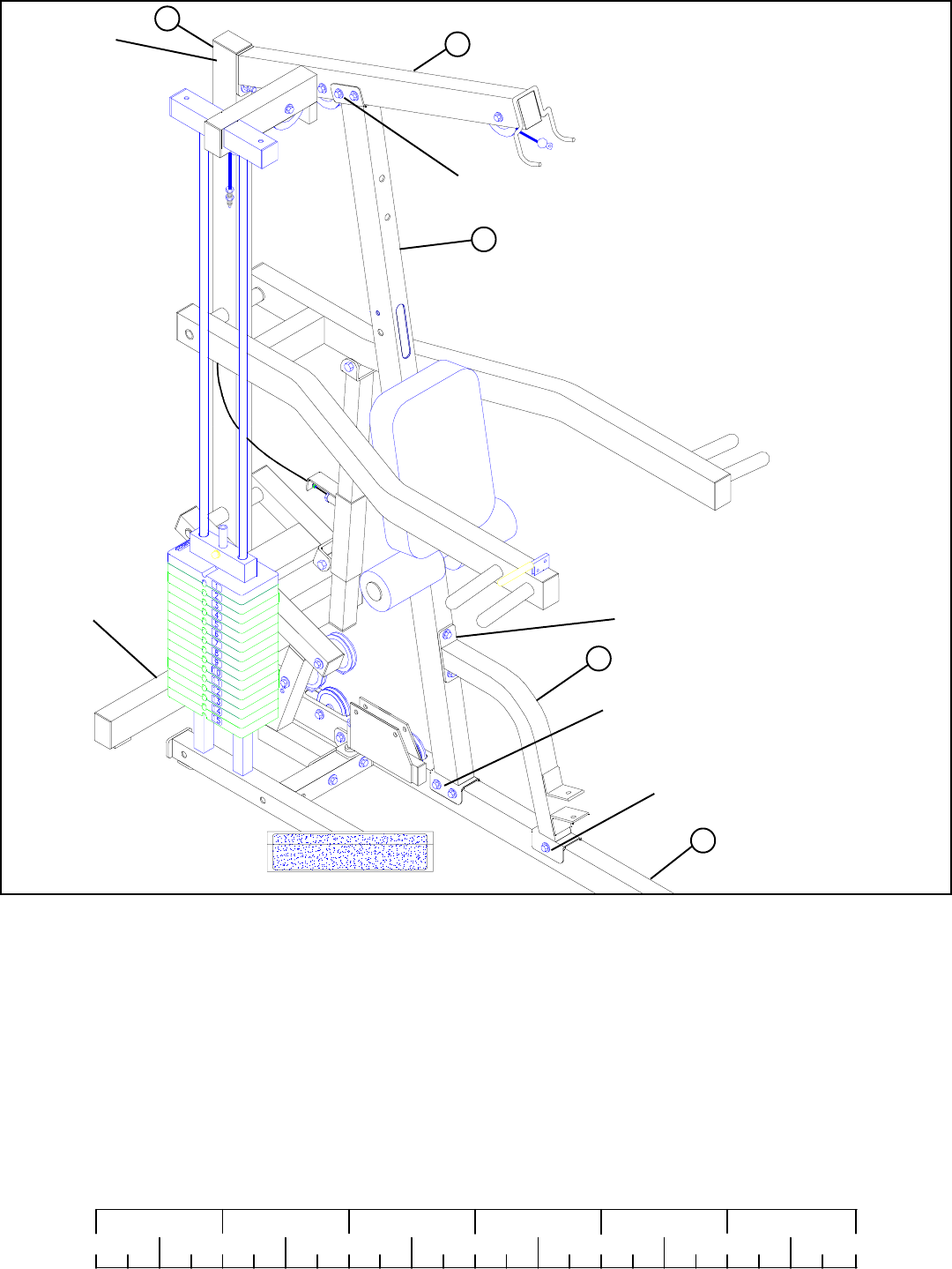

STEP 17
Securely tighten all loose frame connections made to this point.
Tighten the:
• REAR UPRIGHT (16) to the BASE (10).
TIGHTEN
• FRONT UPRIGHT (11) to the BASE (10).
• FRAME SUPPORT (1) to the BASE (10) and the FRONT UPRIGHT (11).
• TOP BOOM (7) to the REAR UPRIGHT (16).
• and the TOP BOOM (7) to the FRONT UPRIGHT (11).
TIGHTEN
TIGHTEN
TIGHTEN
TIGHTEN
7
16
11
10
1
TIGHTEN
