page 12
10. To mount the lower portion of the handrails, take the lower handrail clamps (J), two of the
internal star washers (E), and lower handrail clamp bolts (C) out of the hardware kit. Refer to
Diagram 6 while taking the following steps:
Note: Perform these steps on one side of the treadmill before proceeding to the other side.
a. Put one internal star washer (E) on each of the lower handrail clamp bolts (C). Place the
bolts on either side of the treadmill near the location of the lower handrail.
b. Place the lower handrail inside the lower handrail clamp (J). Slide the handrail nut plate
along its guide rail until the hole in the nut plate is in line with the handrail clamp’s
mounting hole.

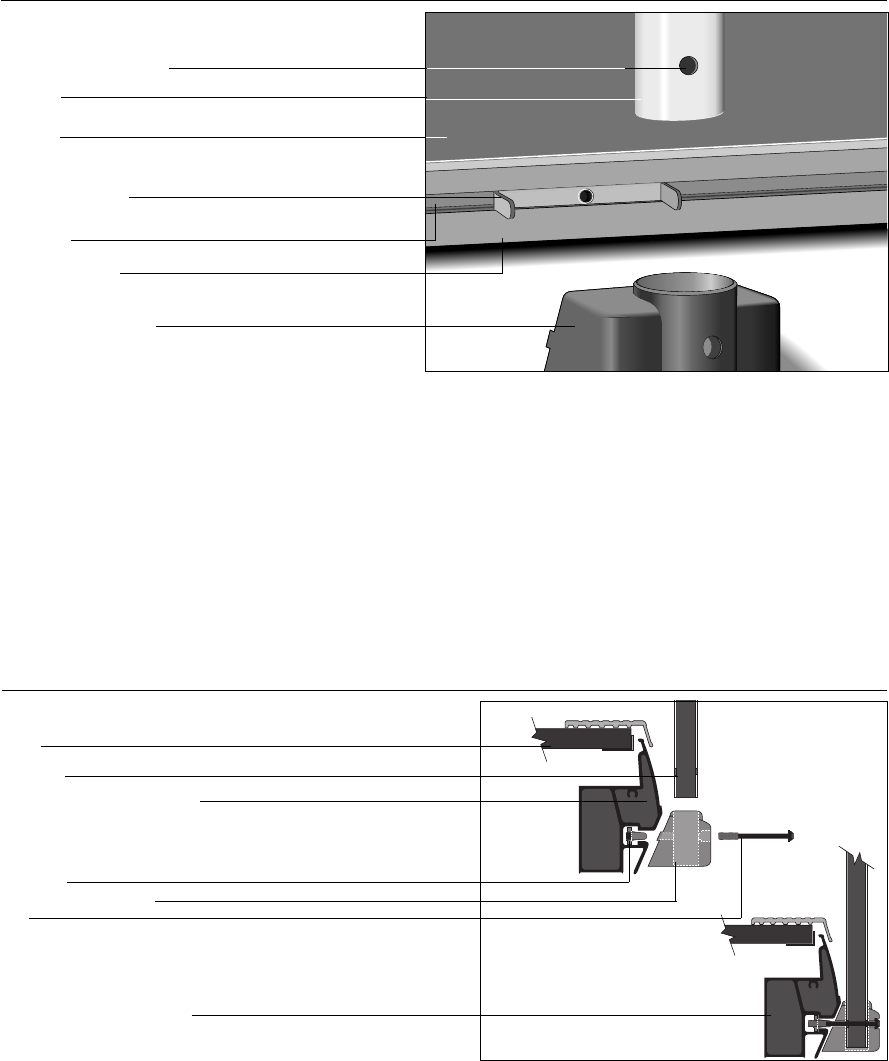

Diagram 6
Handrail
Side rail
Guide rail
Handrail nut plate
Handrail mounting hole
Base of treadmill
Lower handrail clamp
Attach lower handrails.
Nut plate
Lower handrail clamp
Bolt
Lower handrail assembled
Handrail
Base and side rail assembly
Deck
Diagram 7
Secure the lower handrails.
c. Guide the lower handrail clamp onto the nut plate making sure that the flanges on the nut
plate are inside the lower handrail clamp. See Diagram 7. Slide the clamp and nut plate
along the guide rail to find the equilibrium point for the handrail.
d. To secure the handrail inside the clamp, use the 5/32" hex key ( I ) provided. Do not
overtighten the bolt or damage may occur to the clamp.
Note: Periodically inspect the handrail clamp bolts and, if necessary, tighten the handrail
clamp bolts using the 5/32" hex key ( I ) provided.
e. Proceed to the other side of the treadmill and follow steps “a” through “d” to complete
the installation of the lower handrails.
