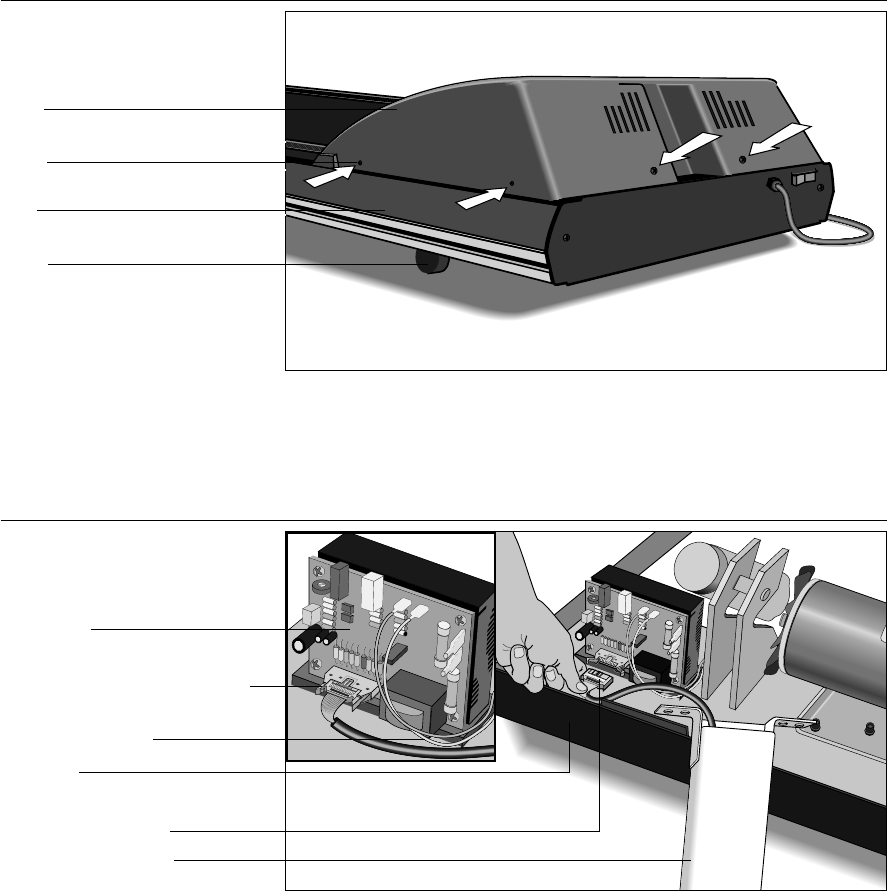

2. Remove the treadmill’s hood using a phillips head screwdriver. Unscrew all six screws
and set them aside. See Diagram 2. Grasp both sides of the hood with your hands and pull up
to remove the hood from the base.
Diagram 2
Hood
Screw
Base
Remove the
hood.
Wheel
PRECOR
PRECOR
Diagram 3
Upright column support
Lower board
Front plate
Ribbon cable connector
Lower board’s cables
Proper tab alignment on receptacle
Plug
connector
into lower
board.
3. Set the upright column support assembly on the front plate. Route the ribbon cable under the
lower board’s cables. See inset in Diagram 3.
4. Align the tab on the ribbon cable connector with its counterpart located on the receptacle on
the lower board. Plug the connector into the receptacle. See Diagram 3. The plastic flanges on
the receptacle should clip onto the connector when you plug it in. Since the connector is
designed to engage in one direction only, do not force the connector into the receptacle.
5. Place a lock washer (D) onto each frame-to-base bolt (A). (The bolts and washers are found in
the hardware kit.) Set the bolts and washers within easy reach of the upright column support.
