page 11
6. Secure the upright column support to the base by lifting it into position onto the base
mounting plate. See Diagram 4. Align the bolt holes and hold onto the upright column support
as you insert the frame-to-base bolts and finger tighten. Alternately tighten each bolt using the
5/16" hex key (F) provided.
7. With the upright column support secure, replace the hood by aligning the screw holes
on the hood with the holes in the base frame. Tighten the screws securely using a phillips
head screwdriver.
8. Loosen the bolts in the upper handrail clamp using the 3/16" hex key (H). You do not need to
remove the bolts.
9. Insert the upper end of a handrail into the upper handrail clamp. Using one hand, apply
pressure on the portion of the handrail going into the clamp while, with the other hand, lift
and lower the base of the handrail. This rotating motion helps move the handrail into place.
The handrail is properly positioned when the black foam wrap touches the clamp as shown in
Diagram 5. Repeat this step for the other handrail.
Important: Do not fully tighten the upper handrail clamp bolts until you have installed the
lower
handrail clamps. The instructions are on the next page.
Secure the
upright
column
support.

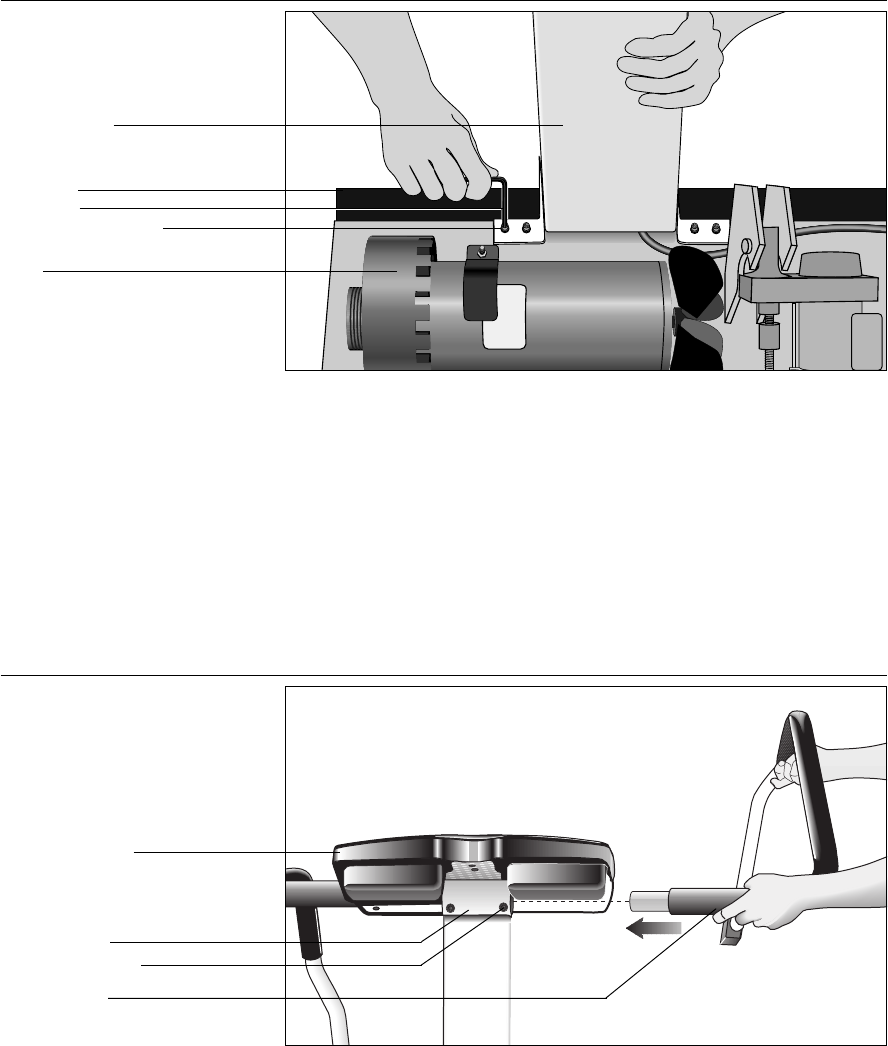

Diagram 4
Upright column
Hex key (F)
Front plate
Frame-to-base bolt (A)
Motor
Diagram 5
Secure the
handrails
into upper
handrail
clamp.
Electronic console
Upper handrail
Handrail clamp bolt
Handrail clamp
