22 Assembling and Maintaining the RBK 815 Recumbent Exercise Bike
2. Lower the console over the mounting bracket so that the
two plastic hooks at the top of the console fit over the two
tabs at the upper corners of the bracket.

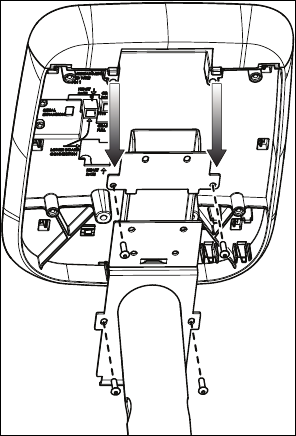

Figure 9: Seating the console
3. Insert four ¹₄-inch x ³₄-inch buttonhead screws through
the screw holes in the tabs on the mounting bracket and
into the screw anchors on the console. Tighten the screws
completely using a ⁵₃₂-inch hex wrench.
