16 Assembling and Maintaining the RBK 815 Recumbent Exercise Bike

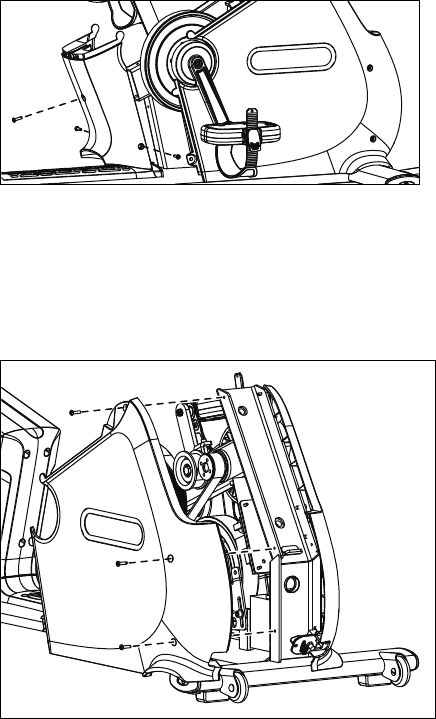

3. Remove the three #10 x 1-inch self-tapping screws
holding the rear cover in place, then lift it off.
Figure 5: Rear cover removal
4. Remove the three #10 x 1-inch self-tapping screws
holding the left side cover in place, then pull the cover
away from the body assembly. Guide the cover around
the pedal crank, then remove it and set it aside.
Figure 6: Left side cover removal
5. Slide the jack panel out of its bracket in the right side
cover.
