Assembling the Exercise Bike 15
To attach the bottle holder:
1. Position the bottle holder so that it wraps around the seat
back assembly and rests on the tab on the back of the
assembly. The front edges of the bottle holder should rest
on the handlebars and the two snap-in tabs should line up
with the small rectangular holes on the seat back
assembly.
2. Press the bottle holder forward until it locks into place.
Installing the Upright Support and Cables
Before you begin this procedure, retrieve the cables for the
console that you plan to install on this exercise bike, or for any
Cardio Theater
®
equipment that you plan to install on the
console.
Note: If you are not installing Cardio Theater equipment on
this bike, you do not need to complete the first procedure in
this section; skip ahead to the following procedure. If you are
installing Cardio Theater equipment on the bike, you will need
to perform both procedures. You will need the help of another
person to complete the procedures.
To prepare the bike for installation of the upright support:
1. Retrieve the cables from the box in which the console was
shipped.
2. Using a #2 Phillips screwdriver, remove the two #10 x
1-inch self-tapping screws holding the top cover in place,
then lift it off. Lift the cover from its front edge first, then
disengage its plastic tabs from the recesses on the rear
cover into which they fit.

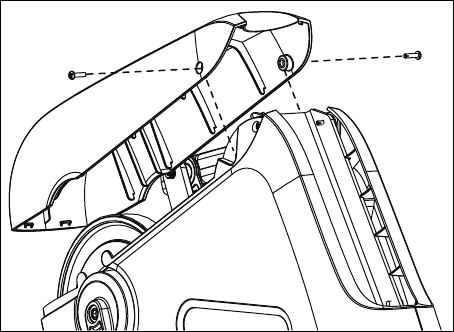

Figure 4: Top cover removal
