page 18
COMMERCIAL PRODUCTS DIVISION

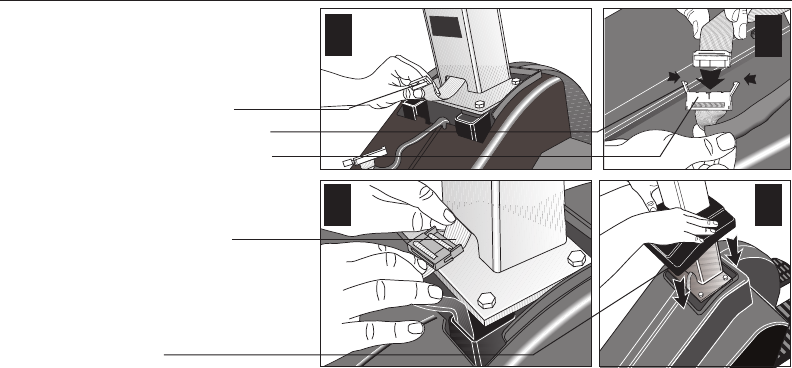

Diagram 11
Connect the ribbon cable
and complete the C764
assembly.
Pull ribbon cable through
upper column.
Connect the ribbon
cable.
Push excess cable into
upper column.
1
2
3 4
Tabs on receptacle
Lower the rubber boot
over the base mounting
plate.
17. Connect the ribbon cable. Return to the upper column where it is mounted
to the base assembly and take the following steps:
a. Pull the ribbon cable out of the upper column. Diagram 11, #1.
b. Open the tabs on the ribbon cable receptacle. Plug the connector into
the receptacle. Diagram 11, #2. Make sure that all pins are aligned and
fully engaged. The connector is designed to engage in one direction
only. Do not force the connector into the receptacle.
c. Gently push the excess ribbon cable and the connectors up into the
column support. Diagram 11, #3.
18. Lower the rubber boot over the base mounting plate. Make sure that the boot
seats correctly over the plastic casing. Diagram 11, #4.
You have completed the installation of the C764 vertical handlebars with the
heart rate feature. To learn more about the heart rate feature continue reading.
