COMMERCIAL PRODUCTS DIVISION

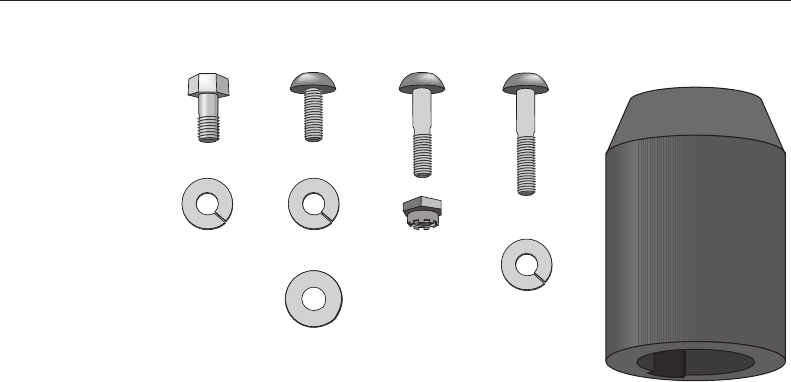

Diagram 2
Hardware kit
H
J
HARDWARE KIT
Carefully unpack the parts from the shipping container. Open the hardware kit
and make sure that you have the following items:
❏ (A) four hex head screws—for installing the upper column support
❏ (B) six split lock washers—attach to screws on upper column support and
to the handrail clamp screws
❏ (C) three screws—for installing electronic console display
❏ (D) three split lock washers—attach to bolts on electronic console display
❏ (E) three washers—attach to bolts on electronic console display
❏ (F) two buttonhead socket bolts—for installing handrails to base frame
❏ (G) two locknuts (nylon end)—attach to lower handrail screws
❏ (H) two buttonhead screws—for installing handrails to handrail clamp
❏ (J) two handrail rubber boots—for covering lower handrail screws at base
If any items are missing, contact your dealer. For customer suppoert, see
Obtaining Service
on page 7.
AC
BD
E
G
F
(B)
