COMMERCIAL PRODUCTS DIVISION
2. Remove the climber from the shipping pallet. Be sure to remove the lag bolt
that holds the climber on the pallet. The lag bolt is located under the right foot
pedal next to the casing. Ask for assistance to lift the climber off the shipping
pallet.
3. Make sure that the climber is unplugged and turned OFF. Do not assemble
the C764 climber if it is plugged into a power outlet.
4. Take the following steps to secure the upper column to the base frame
assembly. Refer to Diagram 3.
a. Remove four split washers (B) four hex head screws (A) from in the
Hardware kit. Place one split washer onto each screw.
b. Slide the rubber boot up the column to expose the mounting plate.
c. Position the upper column above the mounting plate so that the handrail
clamp (on the upper column) faces the foot plates.
d. Align the holes and insert the four screws (A) through the upper column
bracket and into the base frame mounting plate. See Diagram 3. Finger
tighten each screw.
e. Obtain a 1/2-inch socket wrench and alternately tighten each screw until
all four are tight against the bracket. Do not overtighten.

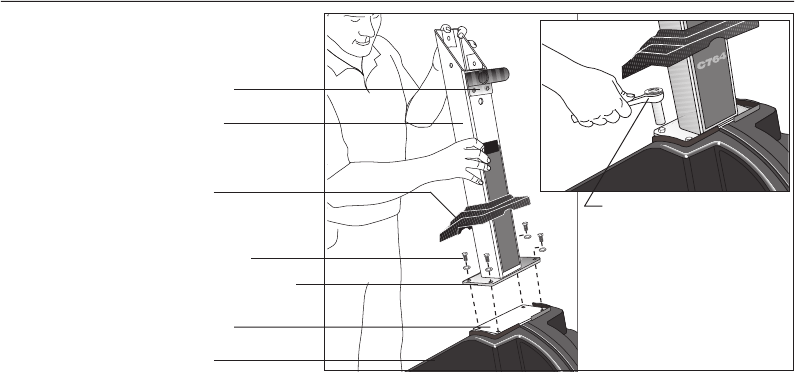

Secure upper column
to base assembly.
Handrail clamp
Upper column
Rubber boot
Base frame
4 screws (A) with split
lock washers (B)
Mounting plate
Upper column bracket
Use a 1/2-inch socket
wrench to secure the
upper column to base
assembly.
Diagram 3
