page 13
COMMERCIAL PRODUCTS DIVISION

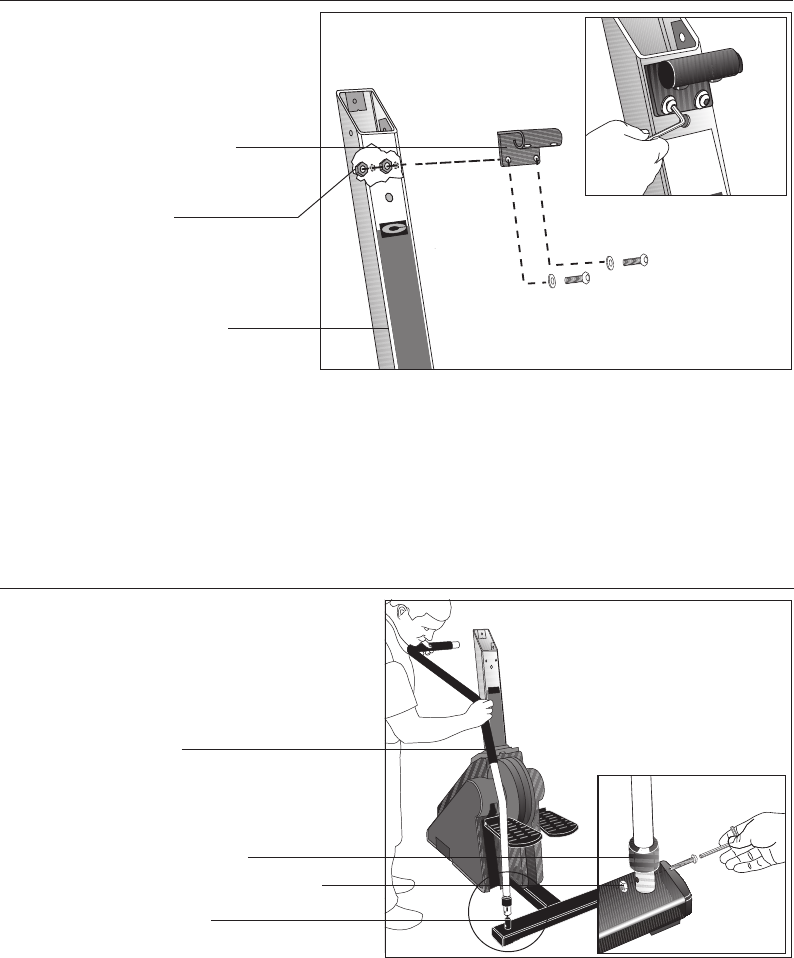

Diagram 4
Remove the handrail
clamp.
Diagram 5
Attach the lower portion of the
handrails to the C764 and
upper portion to the handrail
clamp.
Nylock nuts inside upper
column
Handrail clamp
Upper column
5. Remove the handrail clamp from the upper column. Diagram 4. Nylock
®
nuts
inside the upper column secure the two handrail clamp screws. Hold the two
screws with a 3/16-inch Allen wrench and use a 1/2-inch box end wrench to
loosen the nuts. Carefully place your hand inside the upper column to catch
the nuts as they become loose. Set the fasteners and clamp aside for use
in a later step.
Base mount
Handrail
Handrail boot (J)
Screw (F) with locknut (G)
6. Have an assistant hold the upper portion of the handrails while you slide a
handrail boot (J) onto the base of each handrail. Refer to the inset in Diagram
5. Be sure to mount the bell-shaped boot properly. The wide portion of the “bell”
should be facing toward the base.
7. Place the end of the handrails onto the base mounts and align the mounting
holes. Diagram 5. Insert two screws (F) through each handrail mount.
Attach
a locknut (G) to the opposite end of the screw and finger tighten.
Do not
wrench tighten the screws at this point.
