12. Attach handrails to the side and base brackets. Diagram 11.
Important: Attach one handrail at a time. Take the following steps on one
side of the treadmill and then, attach the opposite handrail.
a. Slide the end of the handrail toward the handrail clamp. Ask your assistant
to hold the handrail in place while you insert screw (C) with washer (F).
Finger tighten the screw to secure the handrail to the side bracket. See
Diagram 11, #1 and #2.
b. Attach the lower portion of the handrail. Diagram 11, #3. Align the handrail
bracket with the two base mounting holes in the side rail. Place a washer (D)
onto each of two screws (C) and insert the screws. Finger tighten.
c. Perform steps a. and b. on the opposite side.

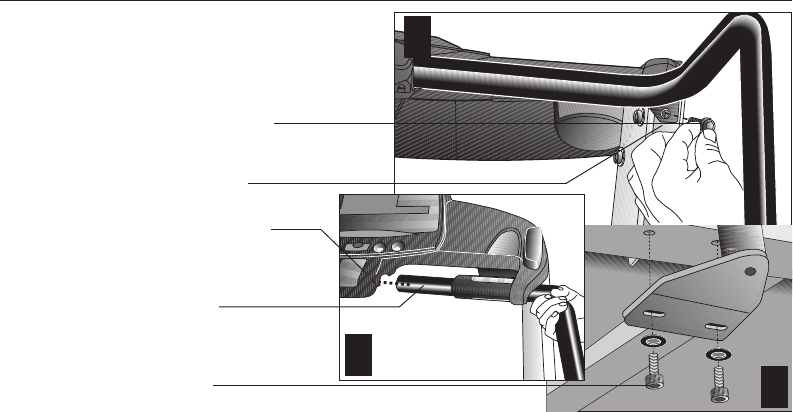

Diagram 11
Secure the handrails.
Side bracket
¾-inch screw (C)
with washer (F)
2
Lower portion of
handrail
3
¾-inch screws (C) with washers (D)
Slide handrail into
position.
Handrail clamp
1
