HARDWARE KIT
After unpacking the treadmill, open the hardware kit (refer to Diagram 2) and
make sure that you have the following items:
❑ (A) four 2-inch long socket head screws — mount upright supports to base
❑ (B) four barrel spacers — place on 2-inch screws
❑ (C) ten ¾-inch long socket head screws
❑ (D) sixteen flat washers
❑ (E) two 1½-inch socket head screws — handrail clamp assembly
❑ (F) four large diameter washers — place on handrail end cap screws
❑ (G) four 1-inch socket head screws — handrail mounting bracket
❑ (H) ¼-inch hex key — 3 inches by 10 inches
If any items are missing, refer to
Obtaining Service
on page 7.
Note: After assembling the treadmill, you will have four ¾-inch long socket head
screws (C) and two flat washers (D) remaining. You can discard them if you wish.
Also, be sure to store the hex key in a secure place. It is used for specific main-
tenance procedures that are described in the manual.
ADDITIONAL TOOLS NEEDED
Obtain the following tools
before
assembling the treadmill.
❑ Wire cutter ❑ ½-inch box end wrench
❑ Bubble level ❑ String

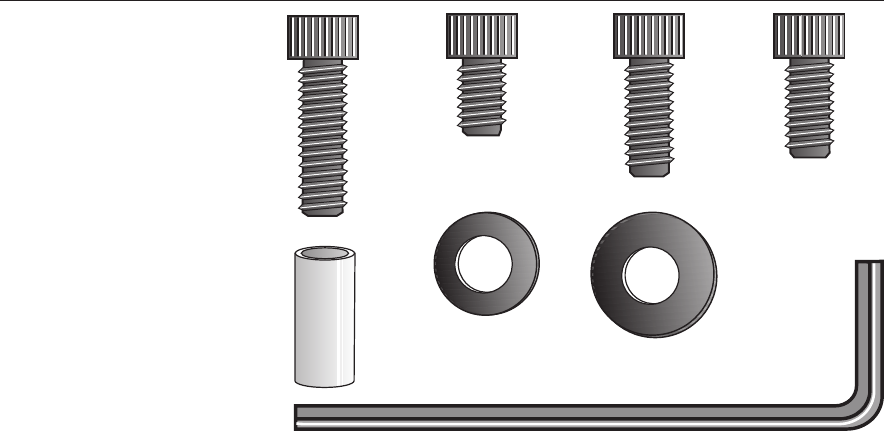

Diagram 2
Hardware kit.
AC
D
B
E
F
G
H
