Horizon Fitness CT5.1 Treadmill User Manual



8

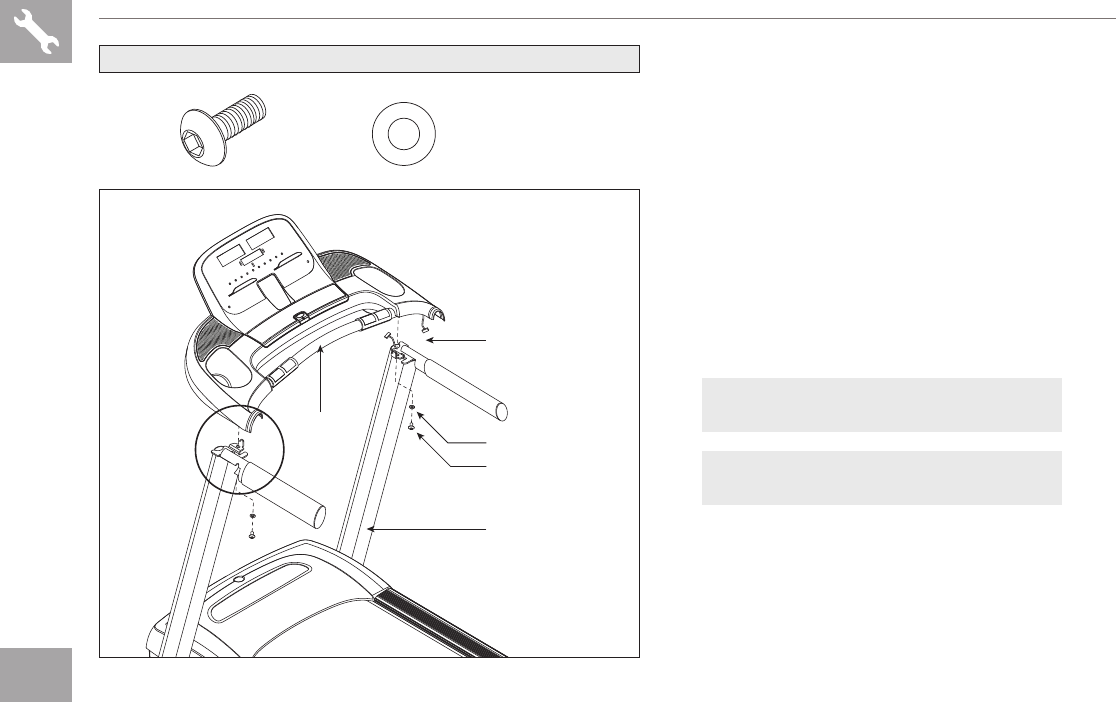

ASSEMBLY STEP 3
BOLT (D)
25 mm
Qty: 2
FLAT WASHER (E)
16 mm
Qty: 2
HARDWARE BAG 3 CONTENTS :
BOLT (D)
FLAT WASHER (E)
CONSOLE MAST
CONSOLE CABLES
CONSOLE
ASSEMBLE
LEFT SIDE
FIRST
A Disengage the deck lock latch with your
foot to lower the running deck.
B Open hardware bag 3.
C Gently place the console on top of the
console masts. Attach the left side first
using 1 bolt (d) and 1 flat washer (e).
D Connect the console cables, carefully
tucking wires in masts to avoid damage.
E Attach the right side of the console
using 1 bolt (d) and 1 flat washer (e).
NOTE: Do not completely tighten any
screws or bolts until
step 4 is complete!
NOTE: Be careful not to pinch any wires
while assembling the masts.
