Horizon Fitness CT5.1 Treadmill User Manual



6

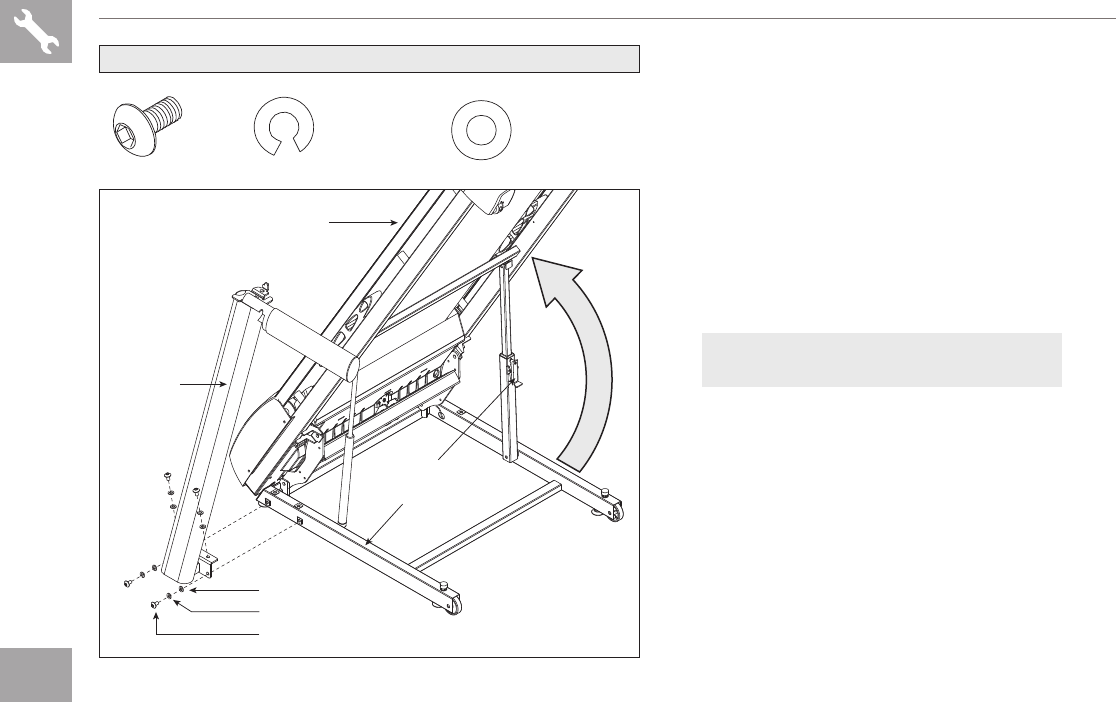

ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the
running deck upward until the foot
latch locks. Remove all contents from
underneath the running deck.
B Open hardware bag 1.
C With the running deck in the raised
position, attach the left console mast
to the base frame using 4 bolts (a),
4 spring washers (b) and 4 flat
washers (c).
BOLT (A)
20 mm
Qty: 4
SPRING WASHER (B)
15 mm
Qty: 4
FLAT WASHER (C)
15 mm
Qty: 4
HARDWARE BAG 1 CONTENTS :
BOLTS (A)
SPRING WASHERS (B)
FLAT WASHERS (C)
LEFT
CONSOLE
MAST
BASE FRAME
RUNNING DECK
FOOT LATCH
NOTE: Do not completely tighten any
screws or bolts until
step 4 is complete!
