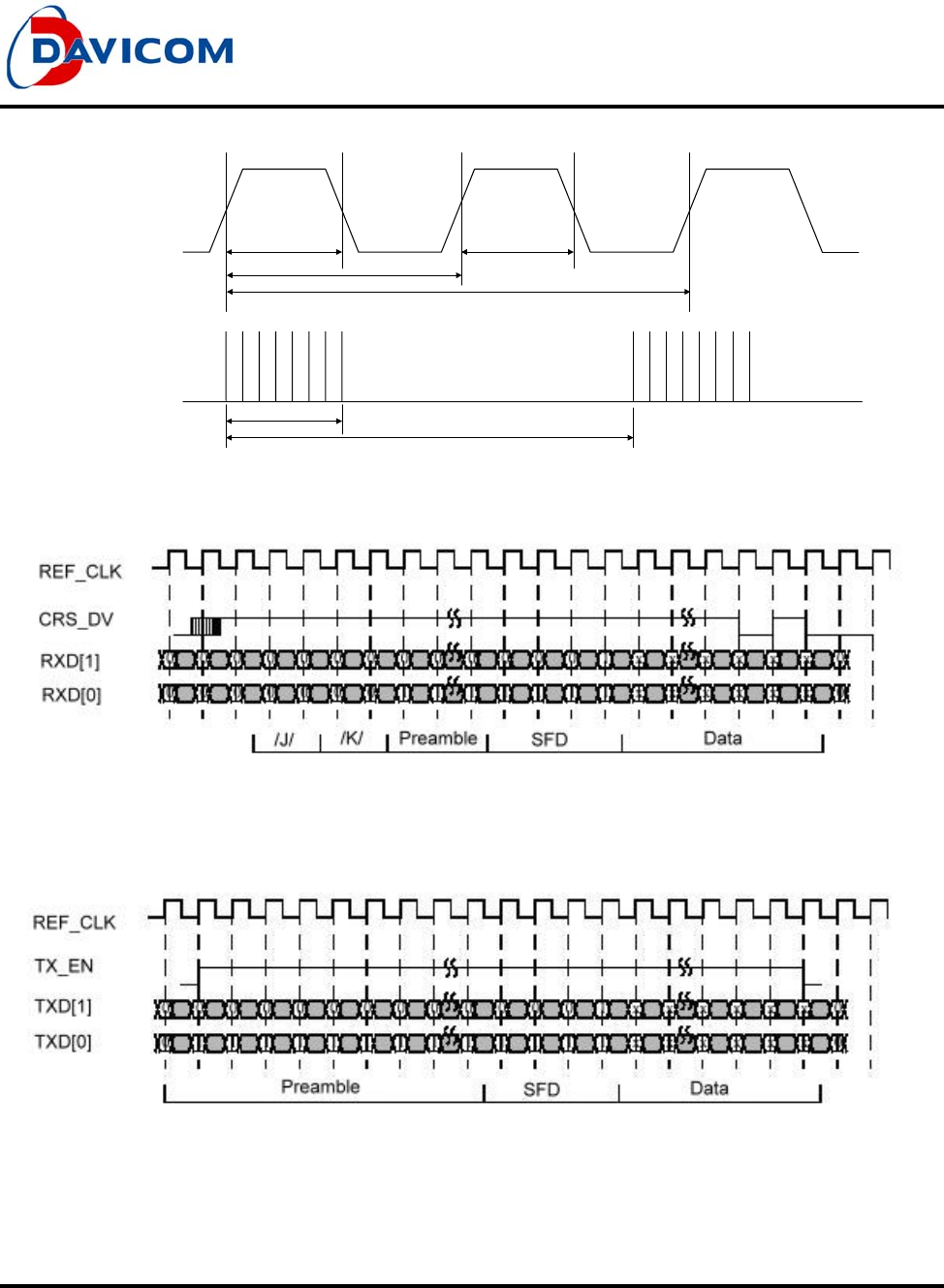

9.4.16 Auto-negotiation and Fast Link Pulse Timing Diagram
FAST LINK
PULSES
Clock Pulse Data Pulse Clock Pulse
t
1
t
2
t
3
FLP Burst
FLP Burst
t
4
t
5
FLP Bursts
t
1
9.4.17 RMII Receive Timing Diagram
100 Mb/s Reception with no errors
9.4.18 RMII Transmit Timing Diagram
100 Mb/s Transmission
