DM9161B
10/100 Mbps Fast Ethernet Physical Layer Single Chip Transceiver
15 Final
Version: DM9161B-12-DS-F01
January 31, 2008
7.2 100Base-TX Operation
The 100Base-TX transmitter receives 4-bit nibble data
clocked in at 25MHz at the MII, and outputs a scrambled
5-bit encoded MLT-3 signal to the media at 100Mbps. The
on-chip clock circuit converts the 25MHz clock into a
125MHz clock for internal use.
The IEEE 802.3u specification defines the Media
Independent Interface. The interface specification defines
a dedicated receive data bus and a dedicated transmit
data bus.
These two busses include various controls and signal
indications that facilitate data transfers between the
DM9161B and the Reconciliation layer.
7.2.1 100Base-TX Transmit
The 100Base-TX transmitter consists of the functional
blocks shown in figure 7-3. The 100Base-TX transmit
section converts 4-bit synchronous data provided by the
MII to a scrambled MLT-3 125, a million symbols per
second serial data stream.
MII
Signals
MII
Interface/
Control
4B/5B
Encoder
4B/5B
Decoder
Register
Code-
group
Alignment
Descrambler
Serial to
Parallel
NRZI
to
NRZ
RX
CRM
MLT-3 to
NRZI
Adaptive
EQ
Digital
Logic
Scrambler
Parallel
to Serial
NRZ
to
NRZI
NRZI to
MLT-3
MLT-3
Driver
Rise/Fall
Time
CTL
TX CGM
LED
Driver
Collision
Detection
Carrier
Sense
Auto-
Negotiation
10BASE-T
Module
RX
TX
125M CLK
25M CLK
LED1-4#25M OSCI
RXI+/-
RXI+/-
10TXD+/-
100TXD+/-
AutoMDIX

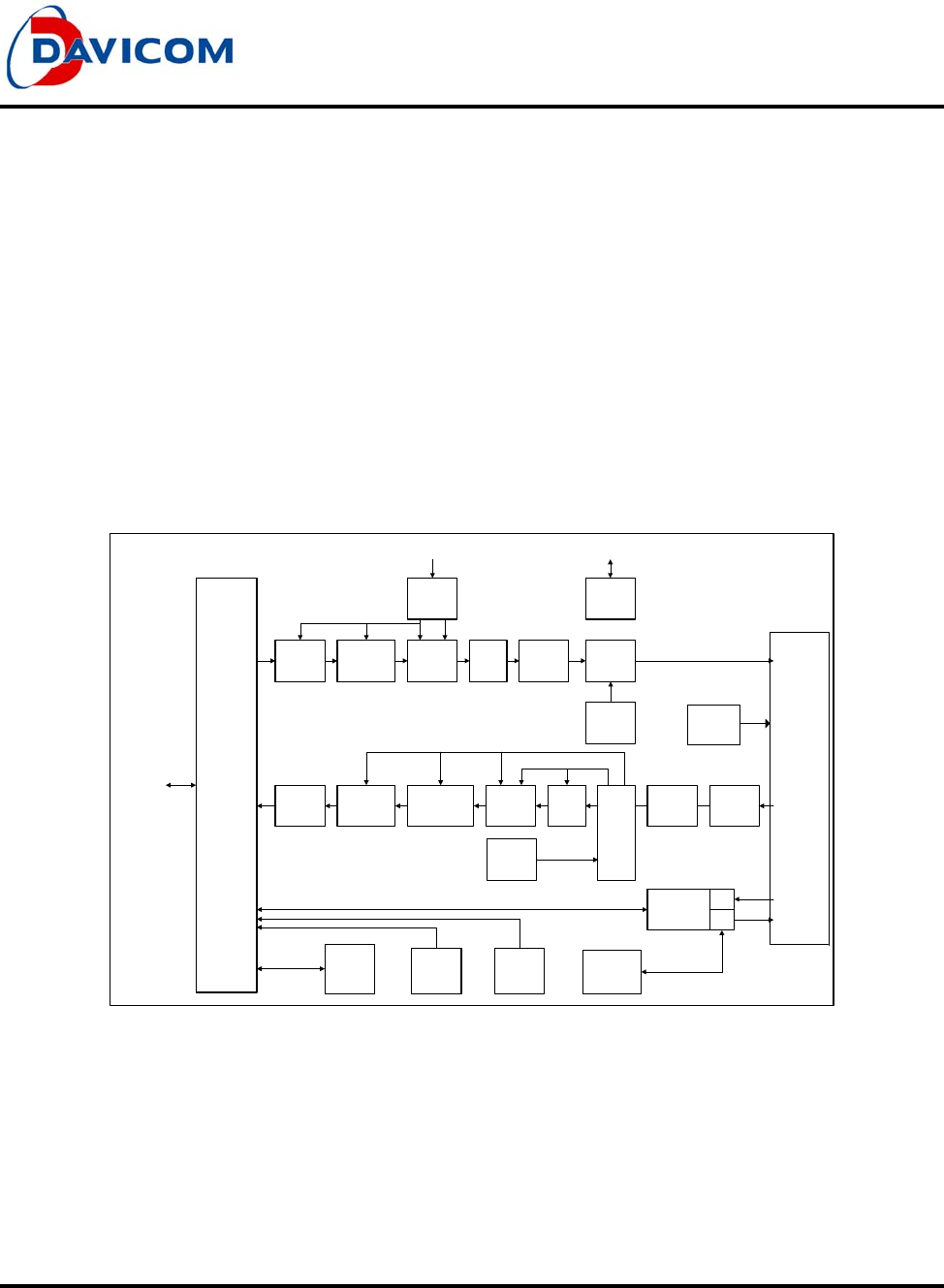

Figure 7-3
