4
ASSEMBLY
Assembly requires two persons. Place all parts of the crosstrainer in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed. In addition to the included
allen wrenches, assembly requires a phillips screwdriver , an adjustable wrench
and a rubber mallet .

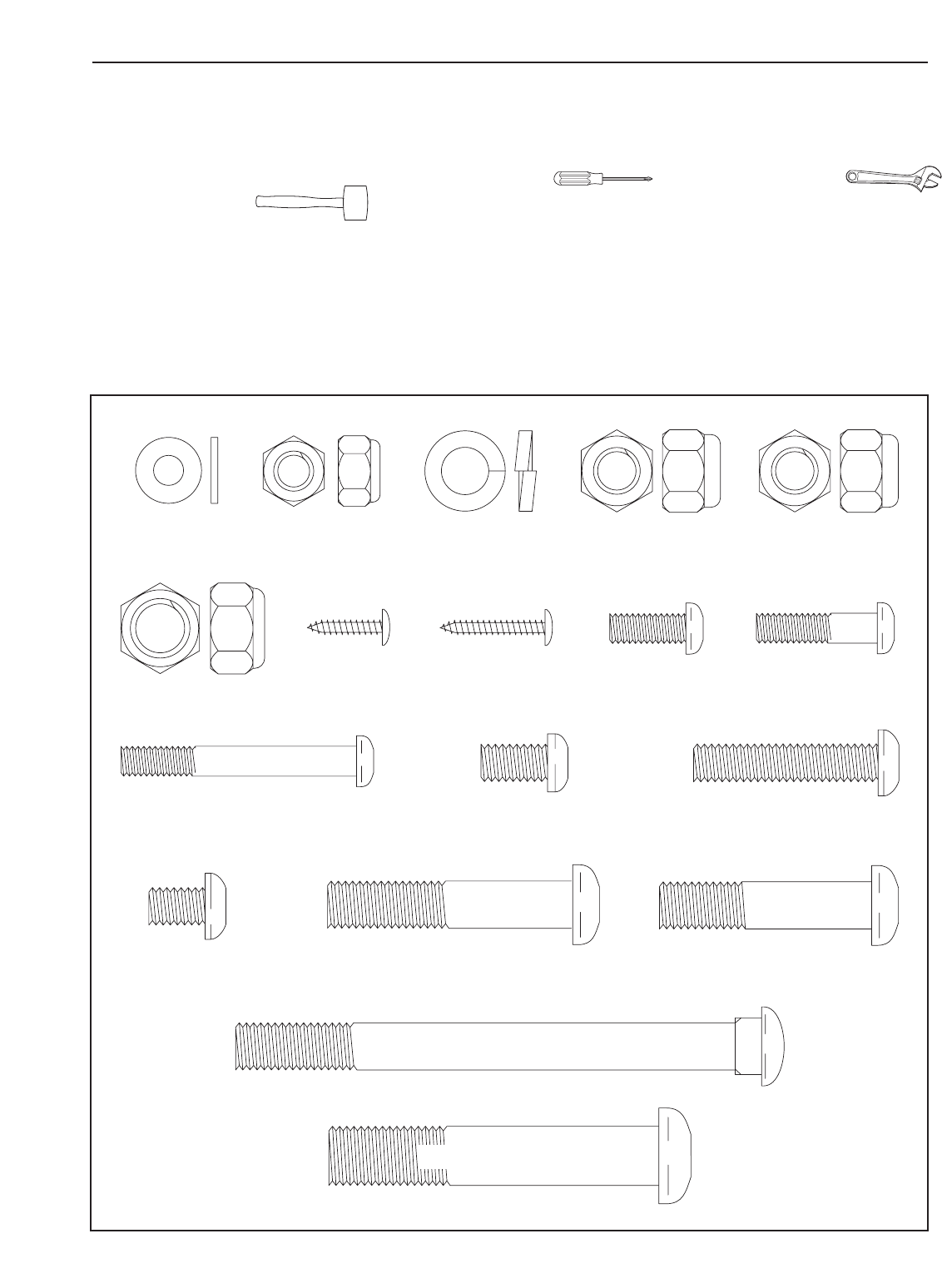

As you assemble the crosstrainer, use the drawings below to identify the small parts used in assembly. The
number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on page
22. The second number refers to the quantity used in assembly. Note: Some small parts may have been pre-
assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
Note: If a part is not in the parts bag, first check to see if it has been pre-assembled. If a part is missing,
call toll-free 1-800-999-3756.
M10 x 112mm Carriage Bolt (65)–2
M10 Zinc Nylon
Locknut (66)–2
M10 Black Nylon
Locknut (63)–2
M10 Zinc Split
Washer (85)–2
1/2” Nylon
Locknut (52)–1
M4 x 16mm
Screw (73)–6
M6 Flat
Washer (71)–1
M6 x 25.4mm Button
Screw (79)–1
M8 Nylon
Locknut (61)–4
M6 x 16mm
Screw (64)–5
M6 x 50mm Screw (69)–1
M10 x 45mm Button
Screw (74)–2
M4 x 22mm
Screw (91)–2
M10 x 52mm Zinc Button
Bolt (68)–2
1/2” x 70mm Button Bolt (51)–1
M8 x 14mm Button
Screw (88)–1
M8 x 12mm Button
Screw (94)–4
M8 x 39mm Button
Bolt (76)–2
