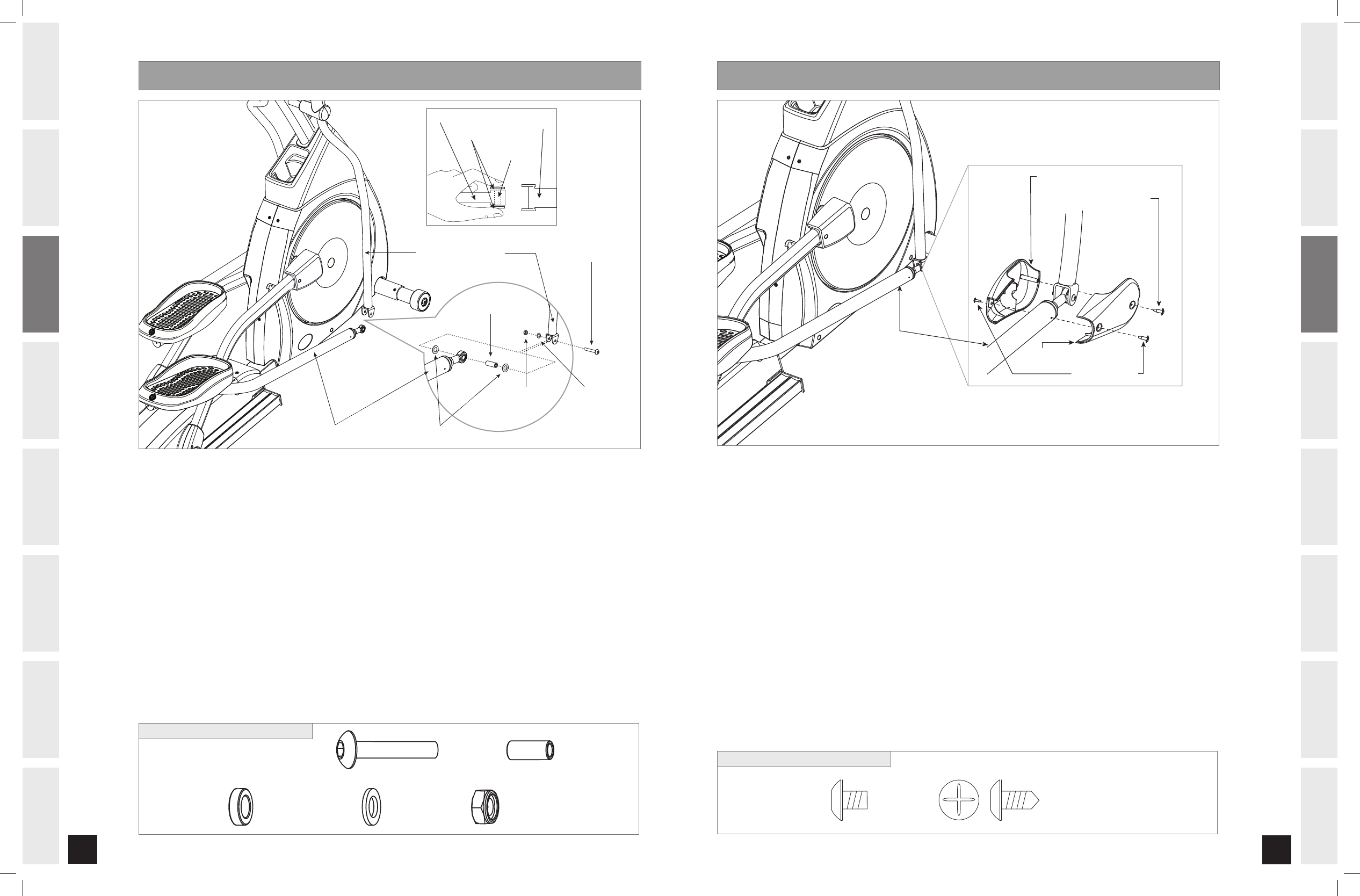

A S S E M B LY ST E P 7
SPACER RINGS (N)
LOWER HANDLEBAR
NUT (Q)
BOLT (M)
LOWER LINK ARM
SPACER (O)
LOWER LINK ARM
SPACER (O)
SPACER RINGS (N)
LOWER
HANDLEBAR
WASHER (P)
A) Open HARDWARE BAG FOR STEP 7.
B) Slide SPACER (O) into LOWER LINK ARM.
C) Place 2 SPACER RINGS (N) on both sides of SPACER (O). While holding
SPACER RINGS (N), slide LOWER LINK ARM into bottom end of LOWER HANDLEBAR.
D) Insert 1 BOLT (M) into LOWER HANDLEBAR and secure using 1 WASHER (P) and 1 NUT (Q).
E) Repeat on other side.
BOLT (M)
45 mm
Qty: 2
SPACER (O)
Qty: 2
SPACER RING (N)
Qty: 4
WASHER (P)
18 mm
Qty: 2
NUT (Q)
8 mm
Qty: 2
HARDWARE BAG FOR STEP 7 CONTENTS :
A S S E M B LY ST E P 8
SCREW (S)
OUTSIDE ELBOW COVER
INSIDE ELBOW COVER
SCREW (R)
LINK ARM
A) Open HARDWARE BAG FOR STEP 8.
B) Attach the OUTSIDE ELBOW COVER to the LINK ARM using 1 SCREW (R).
C) Carefully hold the INSIDE ELBOW COVER onto the OUTSIDE ELBOW COVER. Tighten the
INSIDE ELBOW COVER to the LINK ARM using 1 SCREW (R).
D) Tighten 1 SCREW (S) at the front of the OUTSIDE ELBOW COVER.
E) Repeat on other side.
SCREW (R)
8 mm
Qty: 4
SCREW (S)
10 mm
Qty: 2
HARDWARE BAG FOR STEP 8 CONTENTS :
