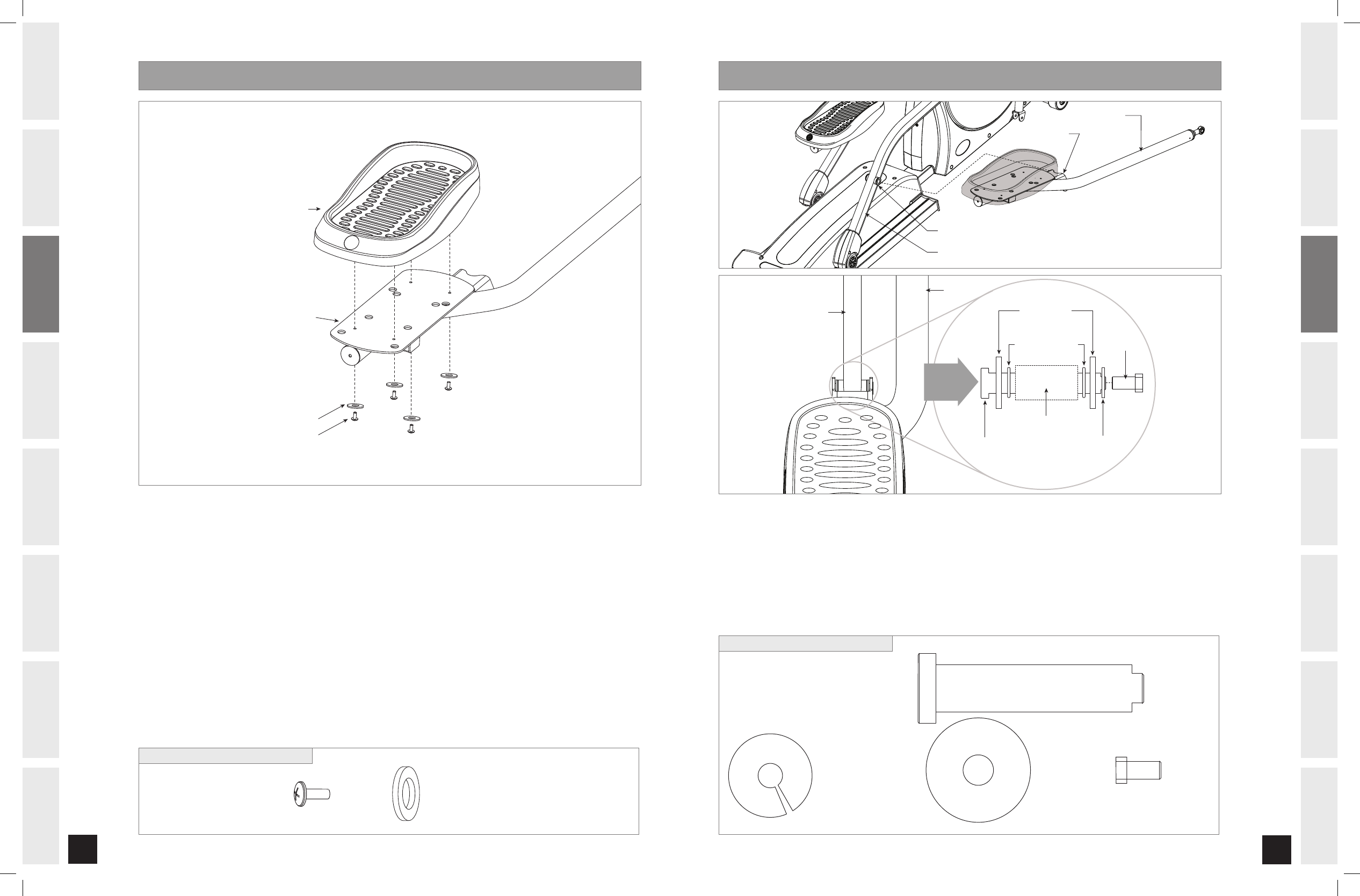

A S S E M B LY ST E P 5
SCREWS (G)
WASHERS (H)
LINK ARM
FOOT PAD
A) Open HARDWARE BAG FOR STEP 5.
B) Attach FOOT PAD to LINK ARM using 4 SCREWS (G) and 4 WASHERS (H).
C) Repeat on other side.
WASHER (H)
18 mm
Qty: 8
SCREW (G)
12 mm
Qty: 8
HARDWARE BAG FOR STEP 5 CONTENTS :
BOLT (L)
FLAT WASHER (K)
CONNECTING TUBE
SPACER (I)
SPLIT TEFLON
WASHER (J)
U BRACKET
INSERT
SPACER
THIS
DIRECTION
U-BRACKET
CONNECTING TUBE
PEDAL ARM
LINK ARM
PEDAL ARM
LINK ARM
A) Open HARDWARE BAG FOR STEP 6.
B) Align the U-BRACKET on the RIGHT LOWER LINK ARM with the CONNECTING TUBE on the RIGHT PEDAL ARM.
C) Slide the SPACER (I) through the U-BRACKET and the CONNECTING TUBE until it can no longer rotate.
D) Insert 2 SPLIT TEFLON WASHERS (J) between the CONNECTING TUBE and the U-BRACKET.
E) Secure the joint with a FLAT WASHER (K) and BOLT (L).
F) Repeat on the other side.
SPLIT TEFLON WASHER (J)
28 mm
Qty: 4
SPACER (I)
71 mm axis
Qty: 2
FLAT WASHER (K)
35 mm
Qty: 2
BOLT (L)
15 mm
Qty: 2
HARDWARE BAG FOR STEP 6 CONTENTS :
A S S E M B LY ST E P 6
BOLT (L)
FLAT WASHER (K)
CONNECTING TUBE
SPACER (I)
SPLIT TEFLON
WASHER (J)
U BRACKET
INSERT
SPACER
THIS
DIRECTION
U-BRACKET
CONNECTING TUBE
PEDAL ARM
LINK ARM
PEDAL ARM
LINK ARM
