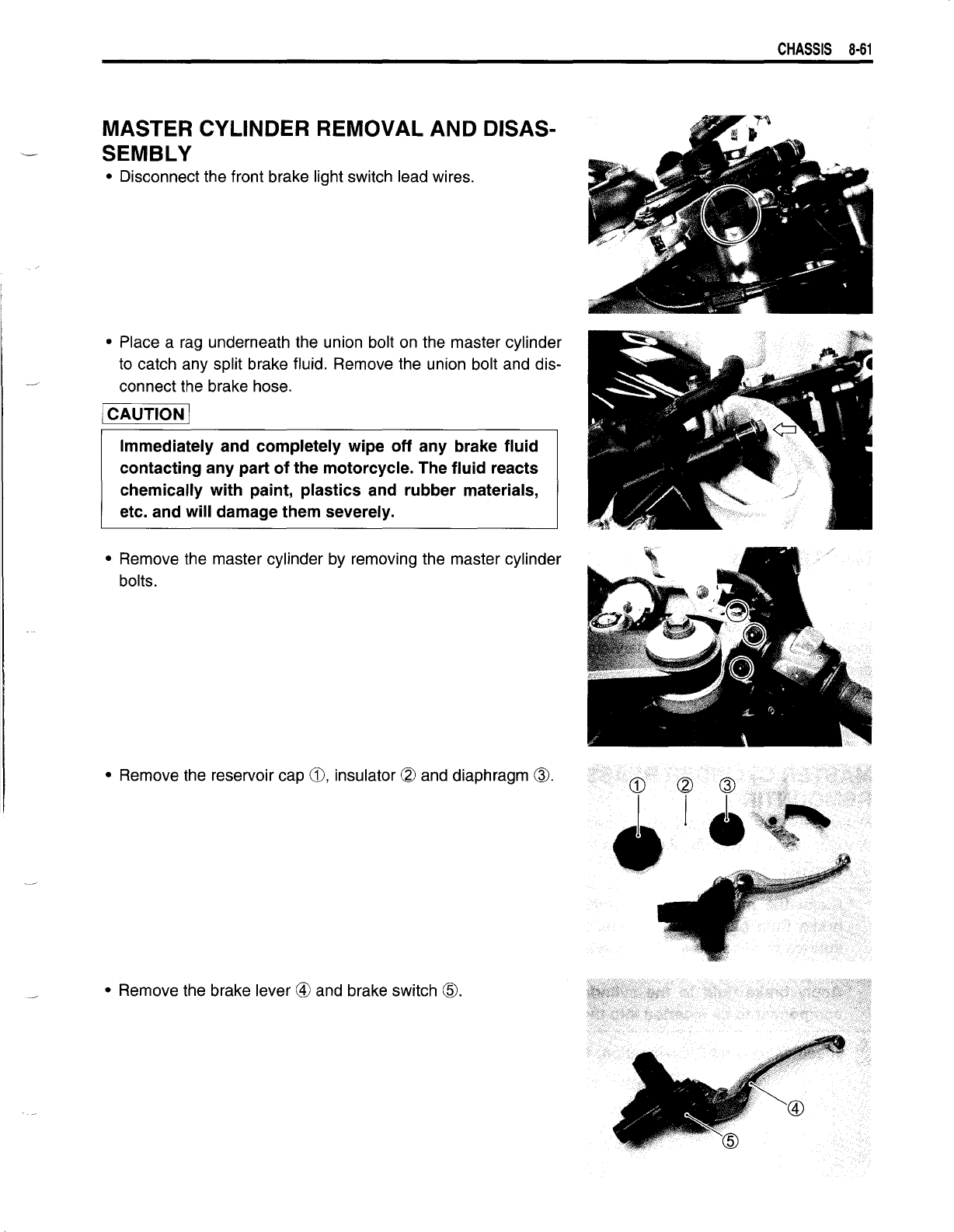

MASTER CYLINDER REMOVAL AND DISAS-
SEMBLY
Disconnect the front brake light switch lead wires.
Place a rag underneath the union bolt on the master cylinder
to catch any split brake fluid. Remove the union bolt and dis-
connect the brake hose.
ICAUTION I
Immediately and completely wipe off any brake fluid
contacting any part of the motorcycle. The fluid reacts
chemically with paint, plastics and rubber materials,
etc. and will damage them severely.
Remove the master cylinder by removing the master cylinder
bolts.
Remove the reservoir cap
CD,
insulator
(2)
and diaphragm @.
Remove the brake lever @ and brake switch @.
