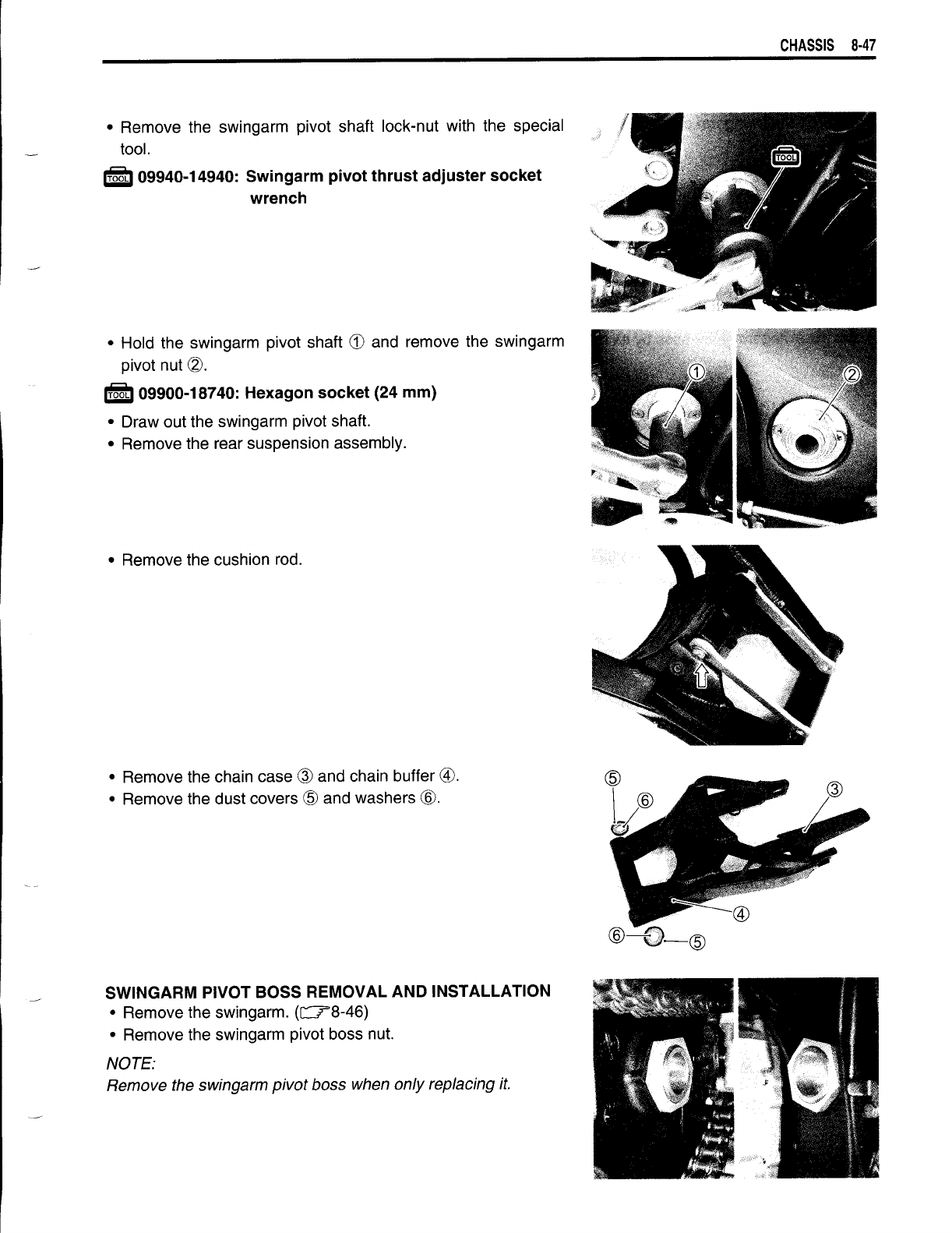

Remove the swingarm pivot shaft lock-nut with the special
tool.
IT'foti
09940-14940: Swingarm pivot thrust adjuster socket
wrench
Hold the swingarm pivot shaft
CD
and remove the swingarm
pivot nut
(2).
IKiOh
09900-18740: Hexagon socket (24 mm)
Draw out the swingarm pivot shaft.
Remove the rear suspension assembly.
Remove the cushion rod.
Remove the chain case
@ and chain buffer @.
Remove the dust covers @ and washers @.
SWINGARM PIVOT BOSS REMOVAL AND INSTALLATION
Remove the swingarm.
(C:::::;=S-46)
Remove the swingarm pivot boss nut.
NOTE:
Remove the swingarm
pivot
boss when only replacing it.
CHASSIS
8-47
~@
