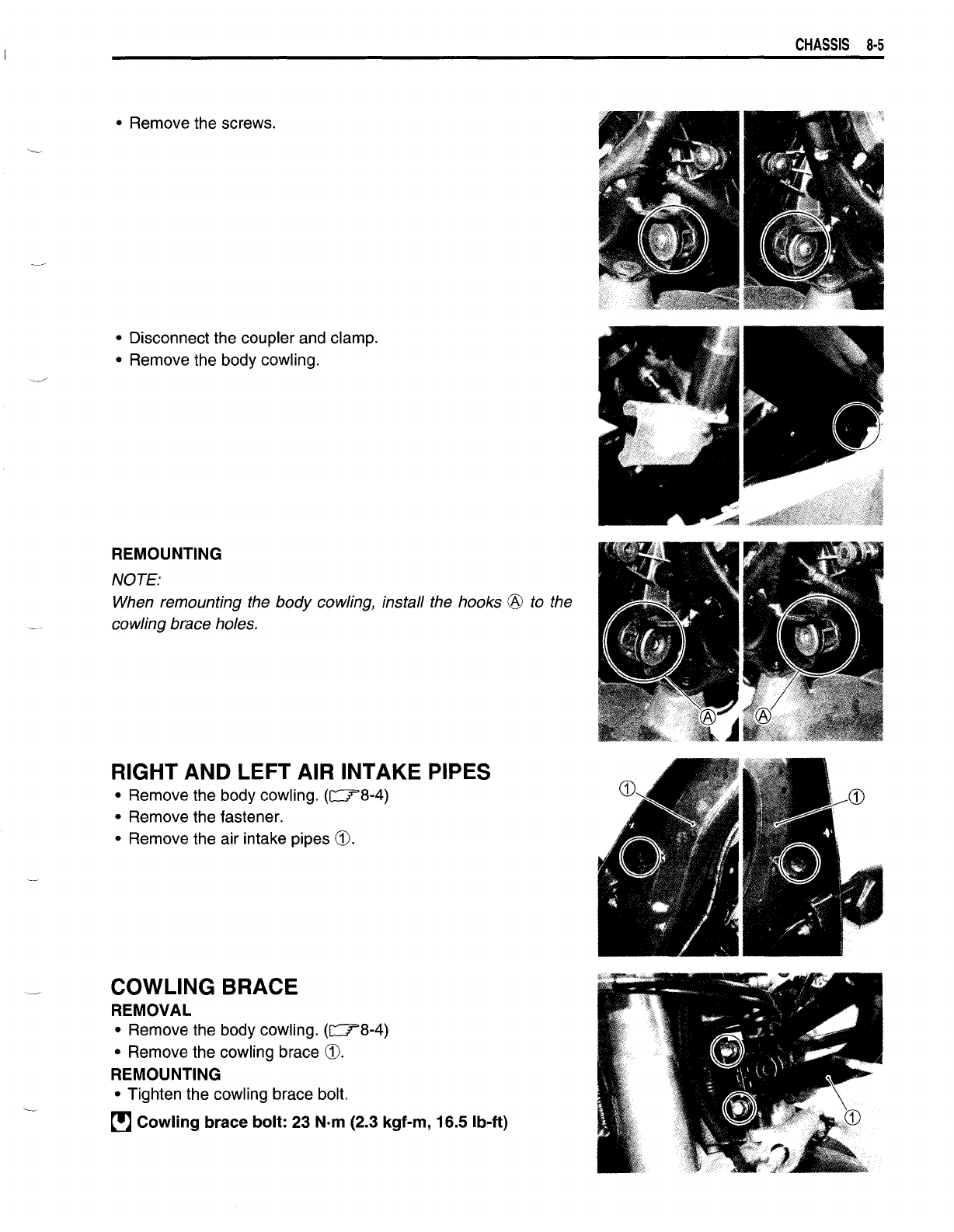

Remove the screws.
Disconnect the coupler and clamp.
Remove the body cowling.
REMOUNTING
NOTE:
When remounting the body cowling, install the hooks
® to the
cowling brace holes.
RIGHT AND LEFT AIR INTAKE PIPES
Remove the body cowling. (c::::7'8-4)
Remove the fastener.
Remove the air intake pipes
CD.
COWLING BRACE
REMOVAL
Remove the body cowling. (c::::7'8-4)
Remove the cowling brace
CD.
REMOUNTING
Tighten the cowling brace bolt.
~
Cowling brace bolt: 23 N·m (2.3 kgf-m, 16.5 Ib-ft)
CHASSIS
8·5
