IN1606 Scaling Presentation Switcher • Installation 9
g

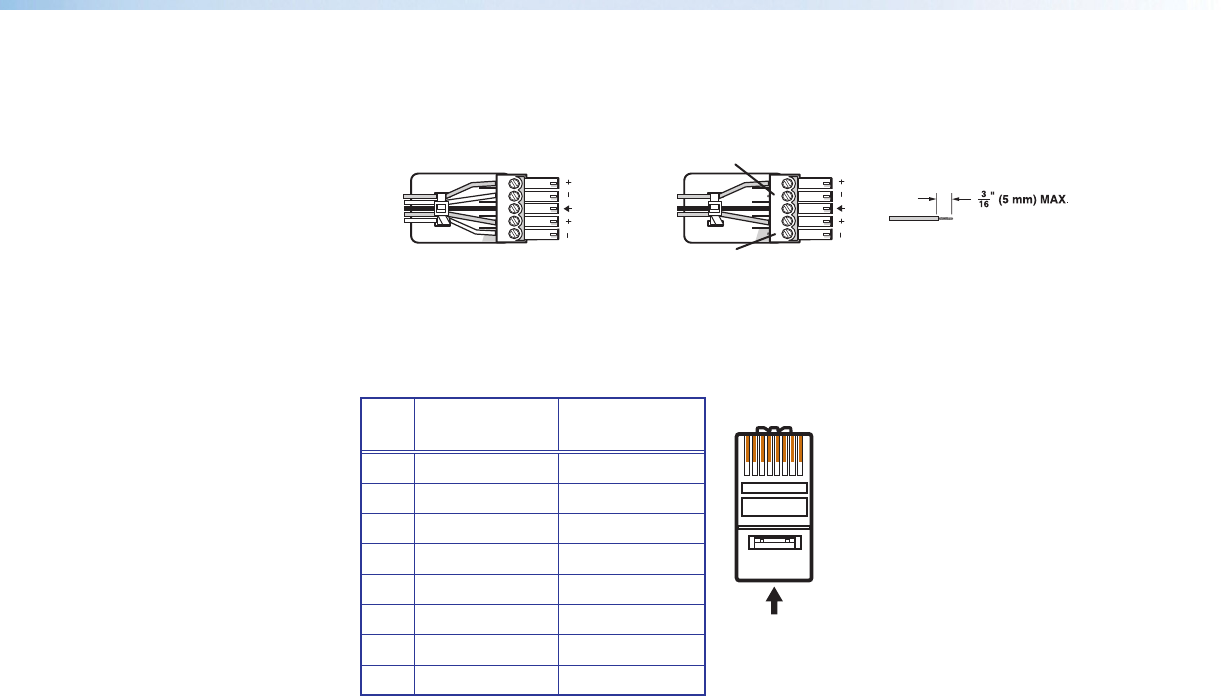

Analog audio output connectors — Connect audio output devices to these 5-pole
captive screw connectors. Wire the connector for line level, balanced or unbalanced,
analog stereo.
Do not tin the wires!
Balanced Audio Output
Tip
Ring
Tip
Ring
Slee
ves
Unbalanced Audio Output
Tip
No Ground Here
No Ground Here
Tip
Sleeves
LR
LR
Figure 5. Audio Output Connector Wiring
h
LAN connector — Connect computer network to this RJ-45 connector. Use a patch
cable to connect to a switch, hub, or router. Wire the connector as shown below.
Pin T568A
Wire Color
T568B
Wire Color
1 White-green White-orange
2 Green Orange
3 White-orange White-green
4 Blue Blue
5 White-blue White-blue
6 Orange Green
7 White-brown White-brown
8 Brown Brown
Activity LED indicator — Blinks to indicate LAN activity.
Link LED indicator — Lights to indicate a good LAN connection.
i
RS-232 connector — Connect a host device to this 3-pole captive screw connector
for RS-232 serial control.
12345678
RJ-45
Connector
Insert Twisted
Pair Wires
Pins:
Pin
1
2
3
4
5
6
7
8
Wire color
White-green
Green
White-orange
Blue
White-blue
Orange
White-brown
Brown
Wire color
T568A T568B
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
