9. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the ellip-
tical exerciser.

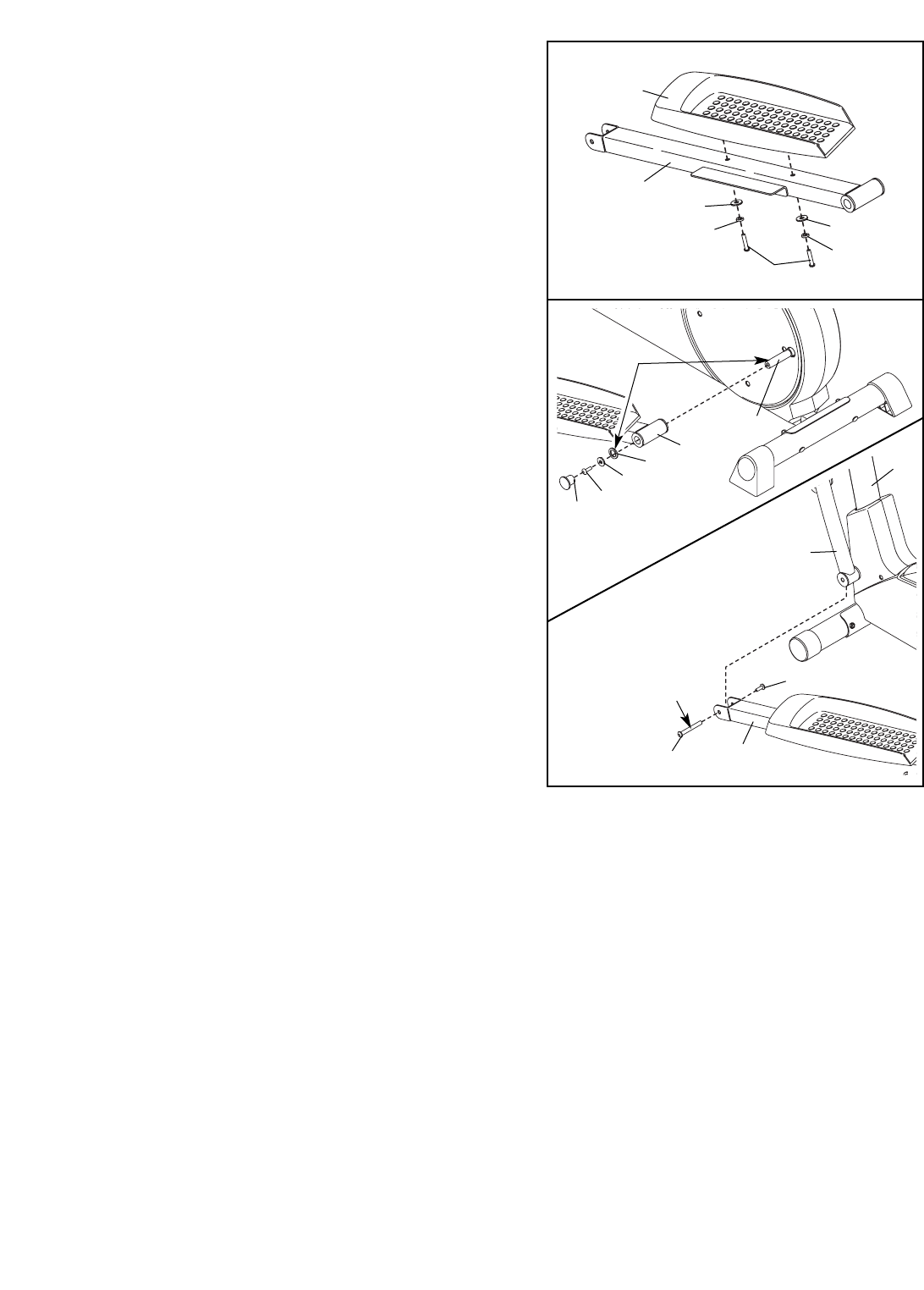

8. Apply a small amount of grease to the axle on the left
Disc Crossbar (16).
Slide the Left Pedal Leg (11) onto the axle on the left
Disc Crossbar (16). Apply a small amount of grease to
a Large Wave Washer (76) and press it onto the end of
the Left Pedal Leg. Next, slide an M10 Washer (35)
onto an M10 x 27mm Patch Screw (40), and tighten the
Patch Screw into the axle. Then, press a Pedal Leg
Endcap (74) into the Left Pedal Leg.
Hold the lower end of the left Handlebar Leg (5) inside
of the bracket on the front of the Left Pedal Leg (11).
Next, apply grease to an M6 Bolt Set (25). Attach the
Handlebar Leg to the Left Pedal Leg with the Bolt Set.
Do not overtighten the Bolt Set; the Handlebar Leg
must pivot freely.
Attach the Right Pedal Leg (not shown) to the right side
of the elliptical exerciser in the same way.
See step 5. Tighten the M10 x 74mm Button Bolts (7)
in the Upright (2). See step 6. Tighten the M8 x 45mm
Button Bolts (50) in the Handlebar Legs (5).
Grease
Grease
16
25
11
40
74
35
76
11
25
5
2
7
27
71
11
13
71
28
28
7. Identify the Left Pedal Leg (11), which is marked with a
sticker. Attach the Left Pedal (13) to the Left Pedal Leg
with two M8 x 52mm Button Screws (27), two M8 Split
Washers (28), and two M8 Washers (71).
Attach the Right Pedal (not shown) in the same way.
