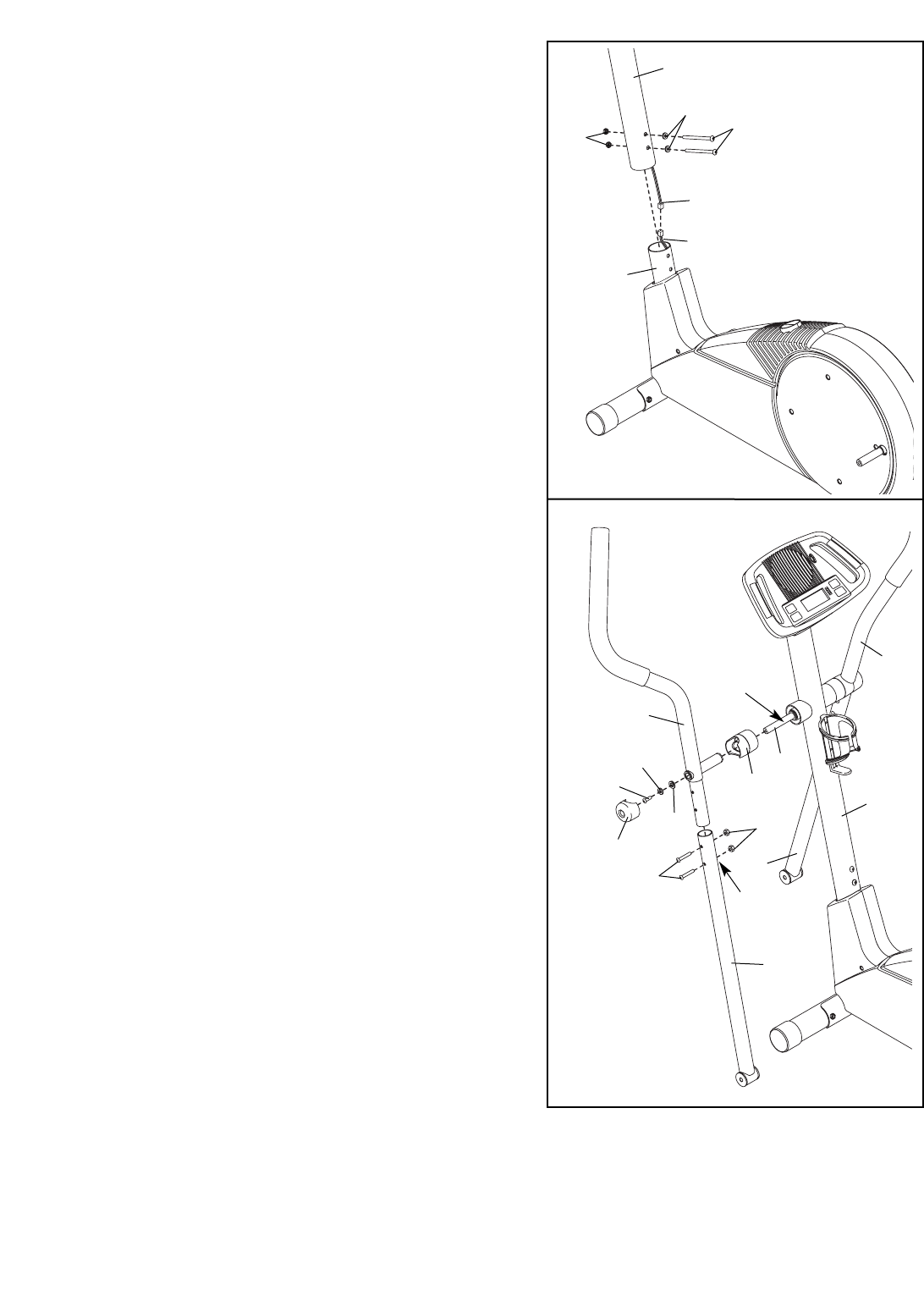

6. Identify the Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (5); make sure that the Handlebar
Leg is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar to the
Handlebar Leg with two M8 x 45mm Button Bolts (50)
and two M8 Nylon Locknuts (38). Make sure that the
Nylon Locknuts are inside of the hexagonal holes.
Do not tighten the Button Bolts yet.
Insert the Pivot Axle (26) into the Upright (2), and cen-
ter the Pivot Axle. Apply a generous amount of the
included grease to both ends of the Pivot Axle.
Turn a Handlebar Spacer (47) so that the small arrow on
the Handlebar Spacer is pointing toward the floor, and
slide the Handlebar Spacer onto the post on the Left
Handlebar (6). Next, slide the Left Handlebar onto the
Pivot Axle (26).
Slide a Handlebar Washer (55) and a Wave Washer (69)
onto an M8 x 25mm Patch Screw (56), and tighten the
Patch Screw into the Pivot Axle (26). Then, press the
tabs on a Handlebar Cap (46) into the Handlebar
Spacer (47).
Assemble the Right Handlebar (8) and the other
Handlebar Leg (5) in the same way.
Grease
6
47
5
2
5
55
46
26
56
69
6
Hexagonal
Holes
5
1
2
33
Make sure the
wires do not get
pinched and
damaged during
this step.
73
68
7
45
5. While another person holds the Upright (2) in the posi-
tion shown, connect the Extension Wire (68) to the
Lower Wire Harness (73).
Push the Extension Wire (68) and the Lower Wire
Harness (73) down into the Frame (1). Slide the
Upright (2) onto the Frame. Be careful to avoid
pinching the Wires. Attach the Upright with two M10 x
74mm Button Bolts (7), two M10 Split Washers (45),
and two M10 Nylon Locknuts (33). Do not tighten the
Button Bolts yet.
