Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild dish soap. Important: Keep
liquids away from the console and keep the con-
sole out of direct sunlight. During storage, remove
the batteries from the console.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced. See assembly step 3 on page 6
for replacement instructions.

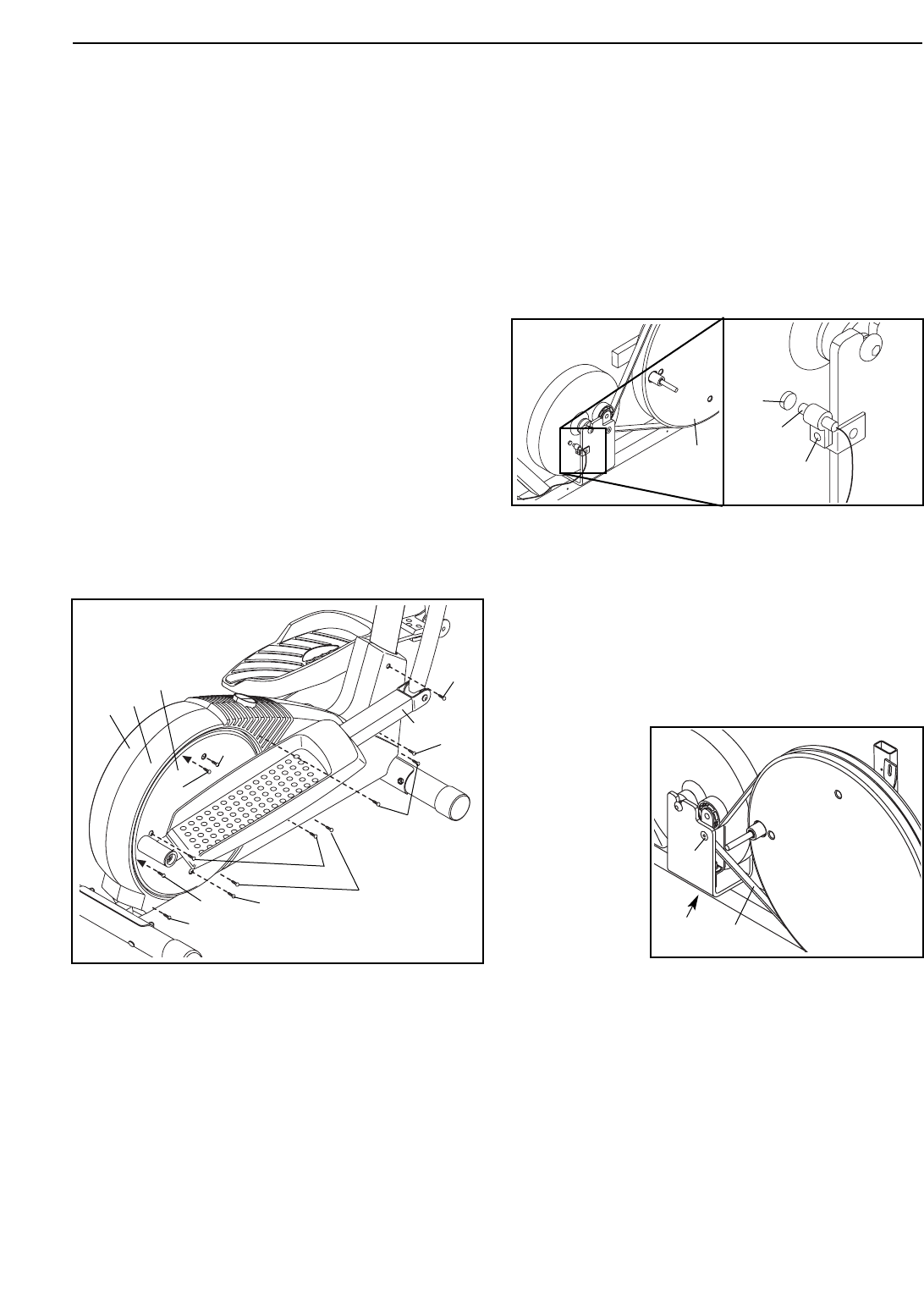

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the Right Pedal Leg
(12), the right Pedal Disc (15), and the Side Shields
(3, 4). See step 8 on page 8 and remove the Right
Pedal Leg.
Next, remove the four Screws (51, 70) from the right
Pedal Disc (15), and slide the Pedal Disc off. Remove
all Screws (52, 64) from the Right Side Shield (4) and
the two Bolts (41) from beneath the Pedal Disc, and
remove the Right Side Shield (4). Remove all Screws
(52) from the Left Side Shield (3), and move the Left
Side Shield.
Next, see the drawing below and locate the Reed
Switch (53). Loosen, but do not remove, the indicated
M4 x 16mm Self-tapping Screw (52). Slide the Reed
Switch slightly toward or away from the Magnet (58) on
the flywheel. Retighten the Screw. Turn the left Pedal
Disc (15) for a moment. Repeat until the console dis-
plays correct feedback. When the Reed Switch is cor-
rectly adjusted, reattach the Side Shields (3, 4), the
right Pedal Disc (15), and the Right Pedal Leg (12).
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the Drive Belt (19) may need to be adjusted. To
adjust the Drive Belt, you must first remove both side
shields. See HOW TO ADJUST THE REED SWITCH
at the left and remove the side shields.
Next, loosen
the M8 x
22mm Flat
Head Screw
(65) and turn
the M10 x
60mm Button
Bolt (62) until
the Drive Belt
(19) is tight.
When the
Drive Belt is
tight, tighten
the Flat Head Screw. Then, reattach the side shields.
MAINTENANCE AND TROUBLESHOOTING
64
41
51
70
70
41
52
52
64
64
12
4
15
3
58
53
52
15
65
62
19
