S3.45 Assembly and Maintenance Guide
page 14
1 2 3 4 5 6
5. Attach Seat Upright to Main
Base
A. Attach the Seat Upright to the Main Base using
two 4-inch bolts
four washers
two locknuts
Finger tighten.
Note: If the holes do not line up easily, tilt the main
structure back while another person puts a weight
stem temporarily below the Main Base. Be sure to
remove the weight stem after you wrench tighten.
B. Attach the Cross Brace to the Seat Upright using
one 3-inch bolt
two washers
one locknut
Finger tighten.
C. Wrench tighten all bolts that connect the Cross
Brace and the Seat Upright to the Main Base.

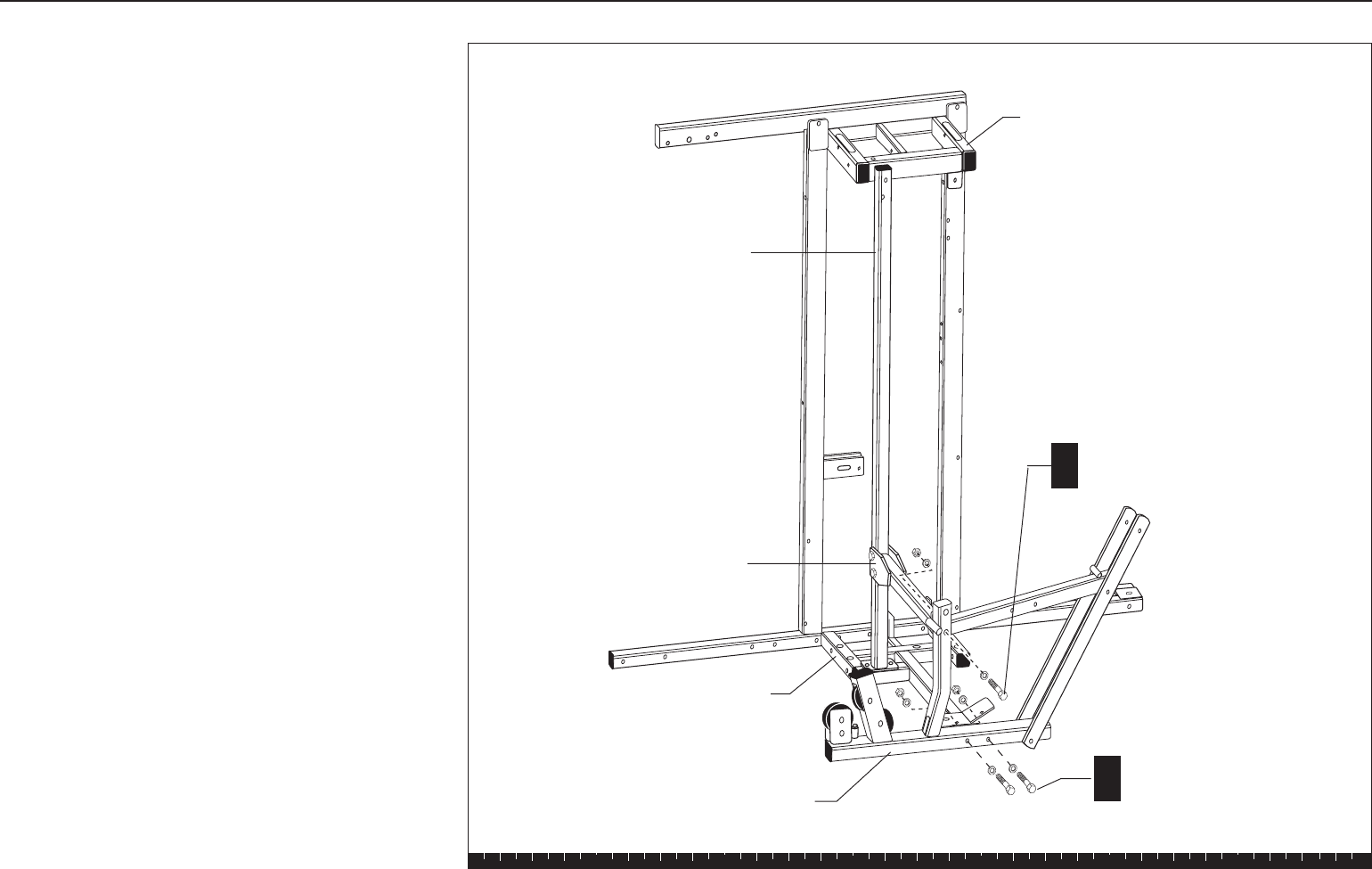

Step 5. Attach Seat Upright to Main Base
Top Frame
B
Main Base
1 - 3" bolt
2 - washers
1 - locknut
A
2 - 4" bolts
4 - washers
2 - locknuts
Seat Upright
Front Upright
Cross Brace
