ENGINE 3-25

CRANKSHAFT

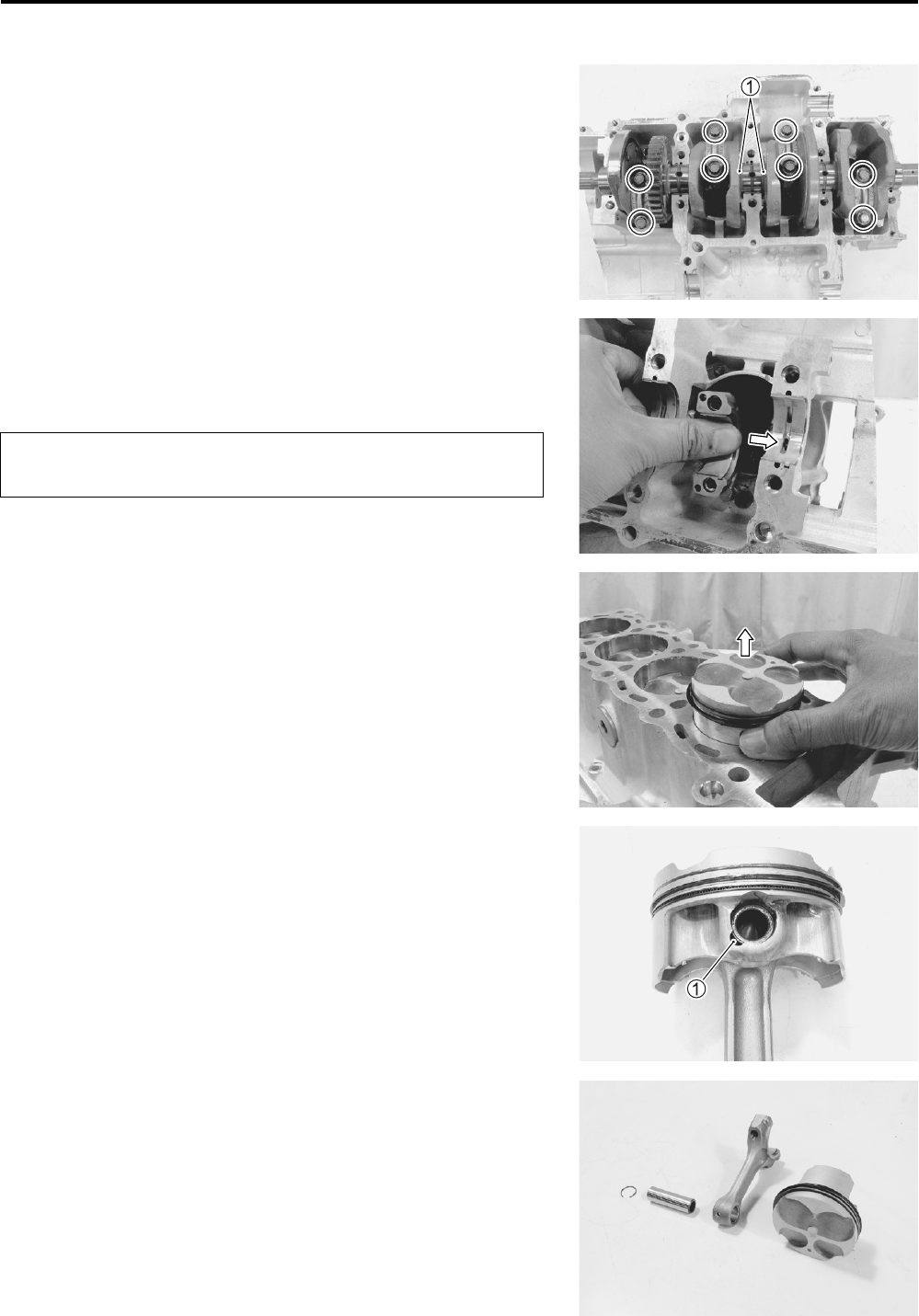

• Loosen the conrod bearing cap bolts by using a 10 mm,

12-point socket wrench, and tap the bearing cap bolts lightly

with a plastic hammer to remove the bearing cap.

• Remove the crankshaft and thrust bearings 1.

PISTON AND CONROD

• Push the conrod to cylinder head side and remove the piston

and conrod from the upper crankcase.



• Remove the piston pin circlip 1.

• Separate the piston and conrod by driving out the piston pin.

NOTE:

Scribe the cylinder number on the piston head.

Be careful not to damage the cylinder wall by the con-

rod.
