7-16 COOLING AND LUBRICATION SYSTEM

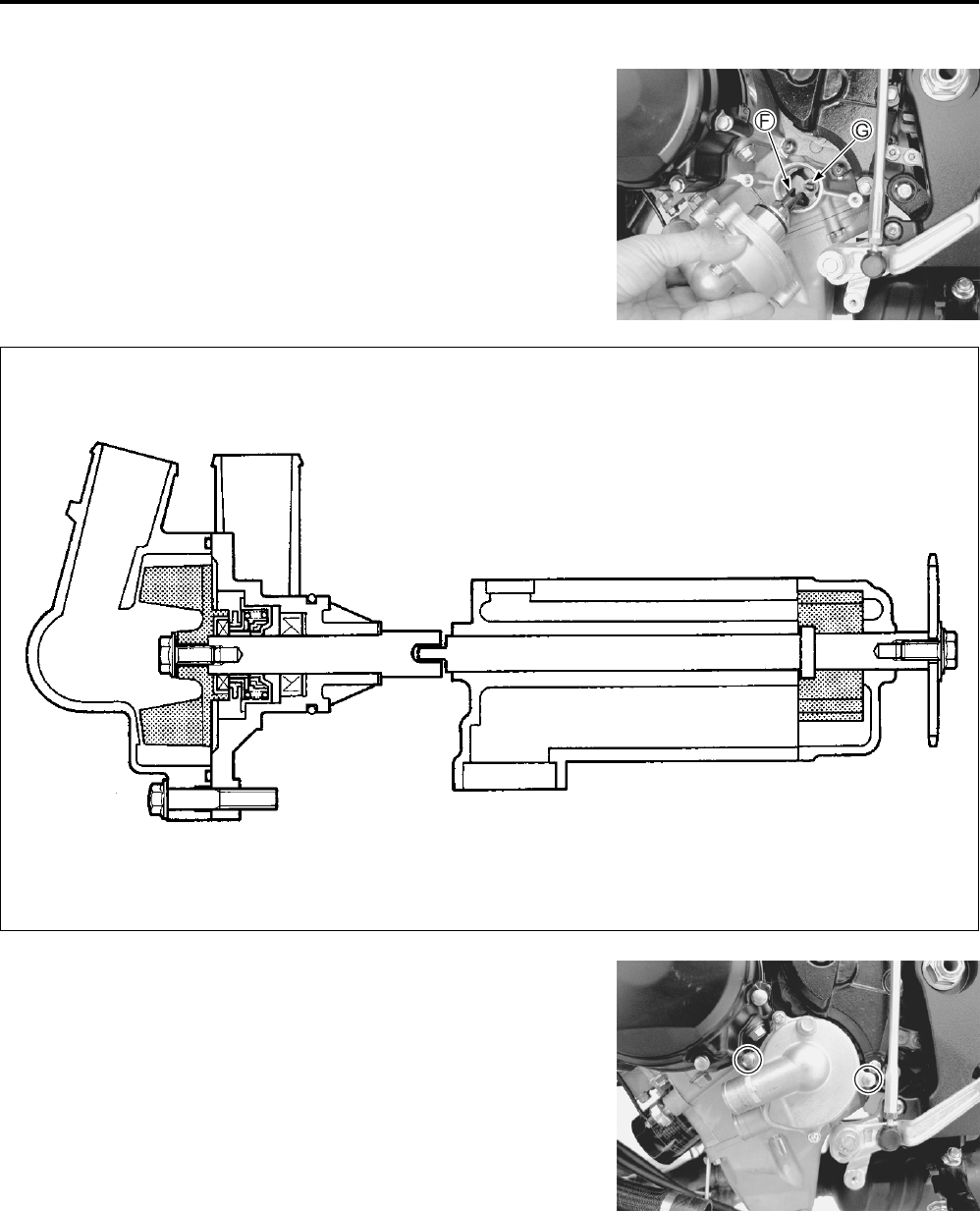

Install the water pump.
NOTE:
Set the water pump shaft end
F
to the oil pump shaft
G
as
shown.
Tighten the water pump mounting bolts to the specified
torque.
Water pump mounting bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
Connect the water hoses. (10-24)
Pour engine coolant. (2-17)
Pour engine oil. (2-13)
Install the under cowlings. (8-5)
