COOLING AND LUBRICATION SYSTEM 7-5

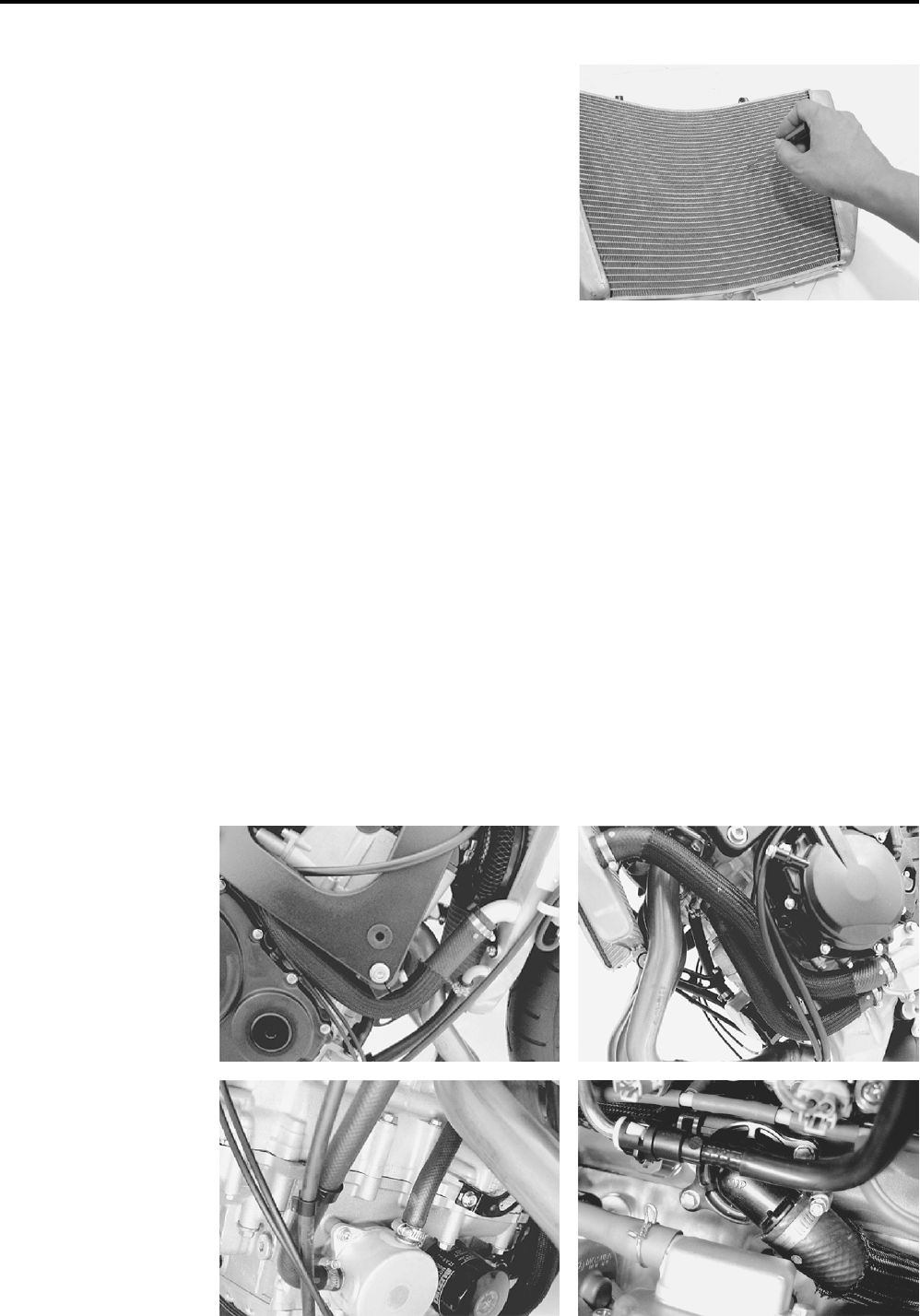

Fins bent down or dented can be repaired by straightening them
with the blade of a small screwdriver.
RADIATOR INSTALLATION
Install the cooling fan.
Cooling fan mounting bolt: 8 N·m (0.8 kgf-m
, 6.0 lb-ft
)
Install the radiator.
Route the radiator hoses properly. (10-24)
Pour engine coolant. (2-17)
Bleed air from the cooling circuit. (2-18)
Install the under cowlings. (8-5)
WATER HOSE INSPECTION
Remove the under cowlings. (8-5)
Lift and support the fuel tank. (5-3)
Any water hose found in a cracked condition or flattened must
be replaced.
Any leakage from the connecting section should be corrected by
proper tightening.
