ASSEMBLY INSTRUCTIONS
8
STEP 3
NOTE:
The RIGHT PEDAL(36) has R stamped on the end of the pedal shaft. The RIGHT PEDAL(36) has
right hand threads and is tightened by turning clockwise. The LEFT PEDAL(35) has L stamped on
the end of the pedal shaft. The LEFT PEDAL(35) has left hand threads and is tightened by turning
counter clockwise.
STEP 4

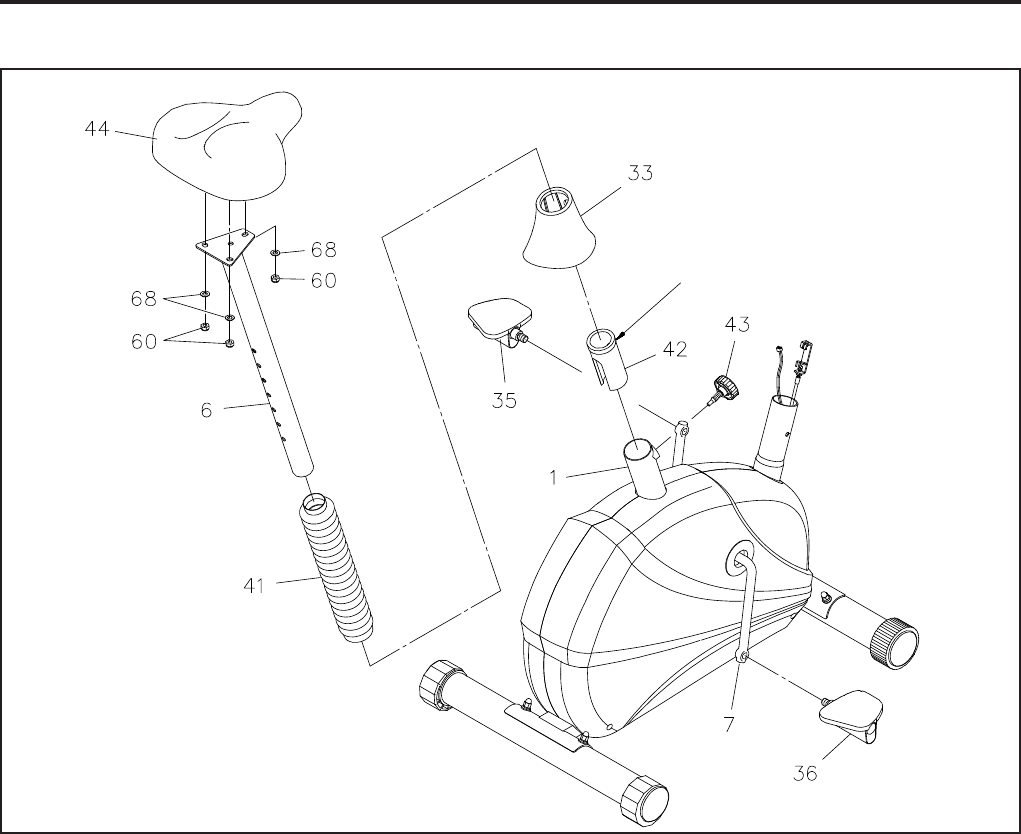

Refer to the Illustration. Make the protrusion in the POST BUSHING(42) face to the front. Insert the POST
BUSHING(42) into the MAIN FRAME(1). Slide the POST SLEEVE(33) onto the MAIN FRAME(1).
STEP 5
Attach the SEAT(44) to the SEAT POST(6) with NYLOCK NUTS(M8x1.25)(60) and WASHERS(M8)(67).
Slide the BELLOWS(41) over the SEAT POST(6). Insert the SEAT POST(6) into the MAIN FRAME(1) and
secure with the ADJUSTMENT KNOB(43).
NOTE:
The ADJUSTMENT KNOB(43) should be screwed in tight to make the SEAT POST(6) fit securely
in the MAIN FRAME(1).
Thread the RIGHT PEDAL(36) to the right side of the CRANK(7) as shown. Tighten the pedal securely. Do
the same to attach the LEFT PEDAL(35) to the left side of the CRANK(7).
The Protrusion
faces to the front.
