ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips
screwdriver .

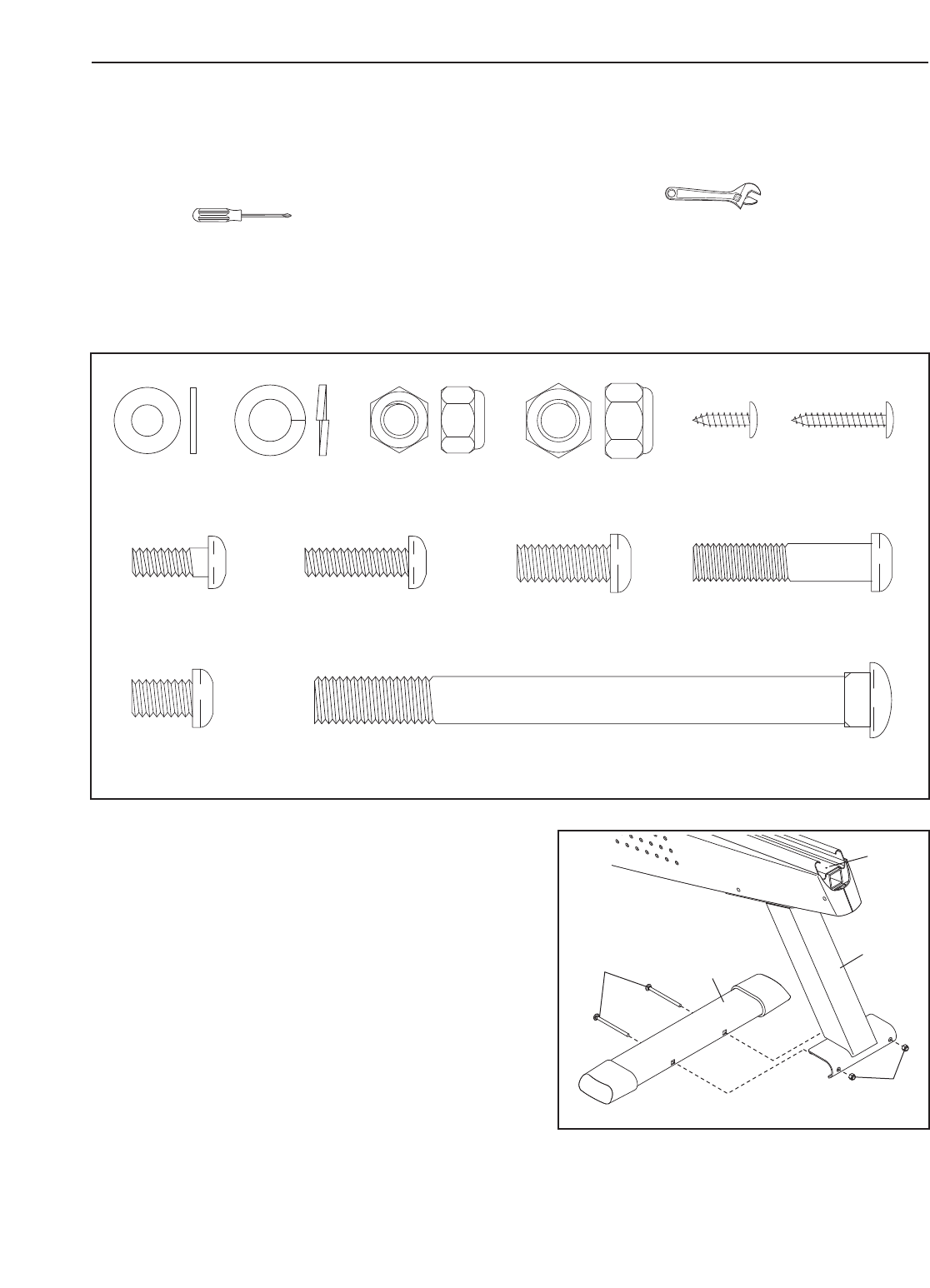

Use the drawings below to identify the small parts used for assembly. The number in parenthesis below each
drawing is the key number of the part, from the PART LIST on page 21. The number following the key number is
the quantity needed for assembly.
Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled. If a part is missing, call toll-free 1-888-533-1333.
M8 Nylon
Locknut (49)–4
M10 Nylon
Locknut (72)–4
M10 x 112mm Carriage Bolt (76)–4
M4 x 12mm
Screw (41)–6
M4 x 20mm
Screw (56)–1
M8 Split
Washer (55)–9
M6 Washer
(66)–4
M8 x 19mm Button
Screw (40)–5
M6 x 16mm Button
Screw (8)–4
M6 x 20mm Button
Screw (63)–3
M8 x 38mm
Button Bolt (58)–4
M8 x 16mm Button
Screw (61)–4
1. Orient the Rear Stabilizer (16) as shown. While another
person lifts the Frame Rail (52), attach the Rear
Stabilizer to the Leg (20) with two M10 x 112mm
Carriage Bolts (76) and two M10 Nylon Locknuts (72).
16
72
76
20
1
52
