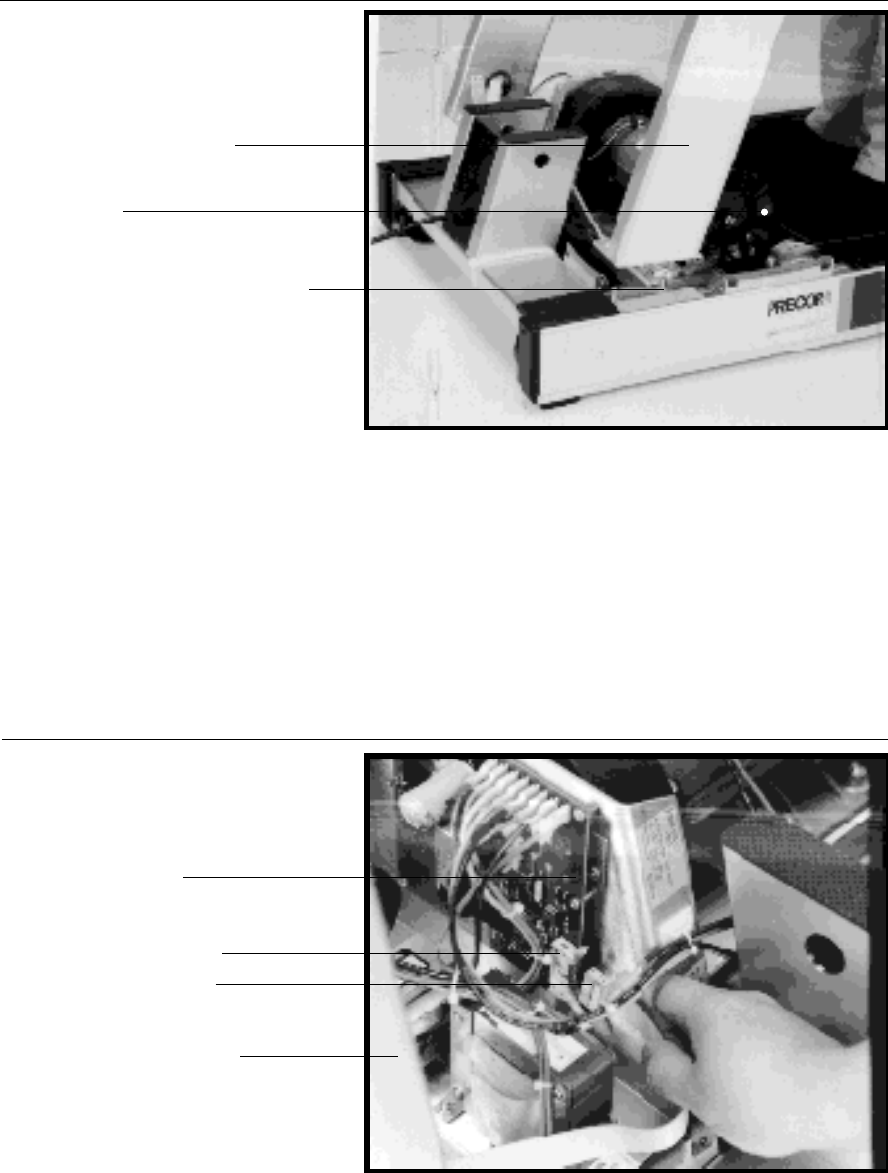

3. Remove the four 5/16" locknuts and washers (two on each side) from the
handrail/display assembly mounts near the front of the running bed as
shown in Photo 1.
4. Position the handrail assembly so both the right and left handrail columns
align over the mounts. Replace the washers and locknuts. Using the hex
key provided in the hardware kit, securely tighten each locknut.
5. Locate the ribbon cable connector that protrudes from the handrail/display
assembly.
Handrail/display
assembly
Handrail/display assembly
Photo 1
6. Align the tab on the side of the ribbon cable connector with its correspond-
ing receptacle on the printed circuit board located near the motor. (See
Photo 2.) Make sure that all pins are aligned and fully engaged. The
connector is designed to engage in one direction only. Do not force the
connector into the receptacle.
Installing ribbon
cable connector
Photo 2
Handrail/display assembly mounts
Running bed
Handrail/display assembly
Ribbon cable receptacle
Ribbon cable connector
Printed circuit board
