Assembling the EFX 23
To attach the water bottle holder:
1. Position the water bottle holder as shown in the graphic
and attach it to the right stationary handlebar.

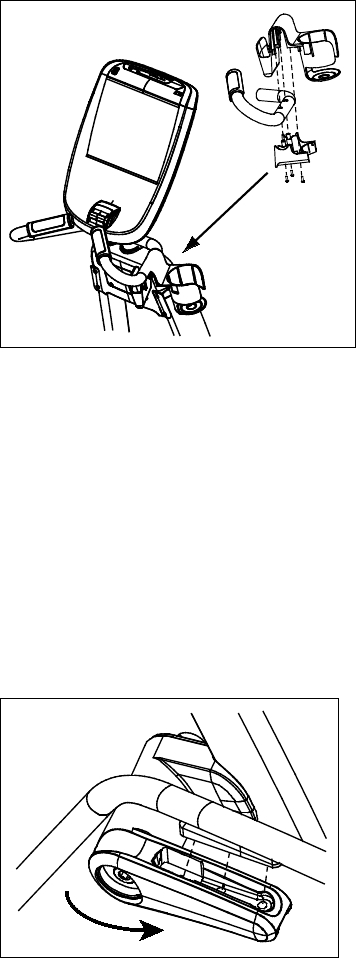

Figure 14: Water bottle attachment
2. Secure the water bottle holder to the handlebar using
three Phillips-head screws.
To attach the upper body handlebars:
CAUTION: Handlebars can swing and cause injury. To
prevent injury, lower the handlebars toward the floor once
handlebar assembly is complete.
1. For proper alignment, rotate the pivot arm to a horizontal
position. Apply pressure to fit the protruding wedge on
the handlebar into the handlebar bracket.
Figure 15: Handlebar and bracket attachment
