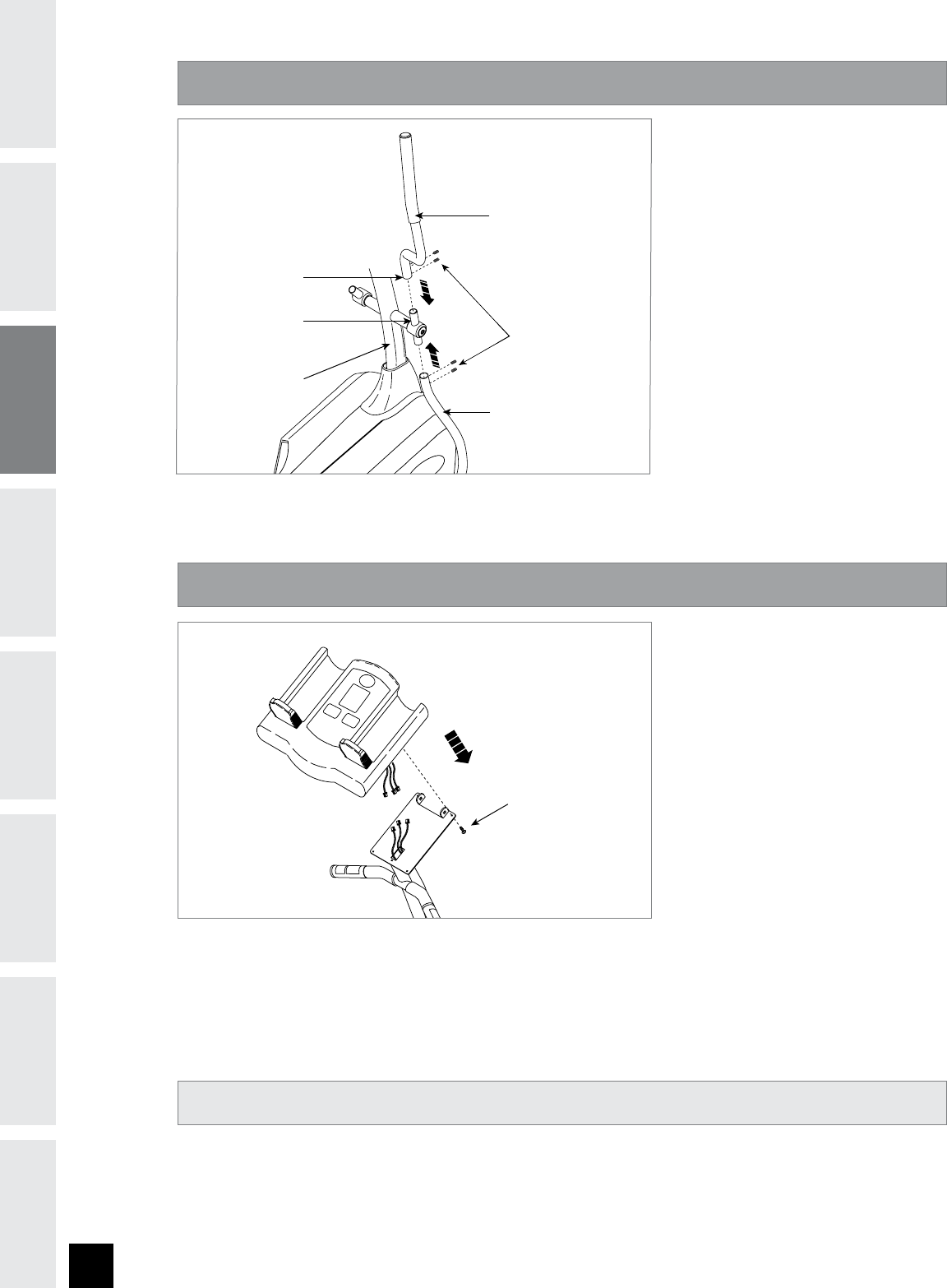

A S S E M B LY S T E P 7
NOTE: There is NO hardware bag for
this step. All hardware is pre-installed.
A) Attach the CONSOLE MAST wires to
the CONSOLE WIRES.
B) Carefully tuck the CONSOLE MAST
wires into the CONSOLE MAST before
attaching the CONSOLE.
C) Attach CONSOLE to the CONSOLE
MAST using the PRE-ATTACHED
SCREWS (screws will have to be
removed from the console first).
DO NOT PINCH WIRES!
PRE-ATTACHED
SCREW
Y O U ’ R E FI N I S H E D !
A S S E M B LY S T E P 6
UPPER HANDLEBAR
LOWER HANDLEBAR
PRE-ATTACHED
SET SCREWS
NOTCH
TAB
CONSOLE MAST
NOTE: There is NO hardware bag for
this step. All hardware is pre-installed.
A) Slide LOWER HANDLEBAR onto
CONSOLE MAST. Secure LOWER
HANDLEBAR to CONSOLE MAST
using PRE-ATTACHED SET SCREWS.
B) Slide UPPER HANDLEBAR onto
CONSOLE MAST and align NOTCH
with TAB making sure bars are
joined together completely. Secure
UPPER HANDLEBAR to CONSOLE
MAST using PRE-ATTACHED SET
SCREWS.
C) Repeat on other side.
