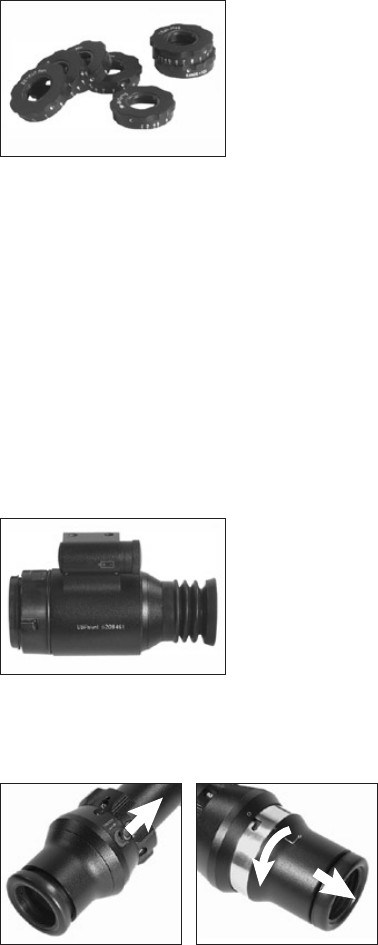

CHANGING THE BULLET DROP COMPENSATOR
Set the bullet drop compensator to the 100-yards (2-6x65) or
200 yards (4-12x80) range. Then remove the elevation dust
cover from the cam. Next you will find three small set screws
on the bullet drop compensator right above the yardage num-
bers. Remove these screws and lift the cam off of the scope.
Once you have done this select the desired caliber cam you
would like to use and place this cam where you removed the
previous one (make sure that a replacement cam is set to the
100-yard range for 2-6x65 and 200 yards for 4-12x80). Then
tighten the cam in place by putting the three set screws back.
Finally replace the dust cover.
MAINTAINING YOUR RIFLESCOPE
Your riflescope is waterproof and shockproof. However, you should never try to take apart
or clean it internally (it will void your warranty). If your scope ever does need repairs or
adjustments, it should be returned to ATN’s service department. The exposed optical
surfaces will perform their best if they are occasionally wiped clean with a lens cloth or
with optical quality lens paper like those for eyeglasses or camera lenses. Maintain the
metal surfaces of your rifle scope by removing any dirt or sand with a soft brush so as
to avoid scratching the finish. Wipe down the scope with a damp cloth and follow with a
dry cloth. Finally, going over the tube with a silicone treated cloth will restore luster and
protect the scope against corrosion. Be careful not to touch the any of the lenses with the
silicone cloth.
THE NIGHT VISION EYEPIECE
The Night Vision eyepiece utilizes a US 2nd or 3rd Gen. Light
Intensifying Tube. A separate, removable, most powerful in
the world (450mW), long-range Infrared Illuminator is also
included to provide the user with total darkness capability.
Furthermore the U.S. government just granted ATM with a
patent for the feature that prevents Tube from burning by the
illuminated reticle.
REPLACING DAY-VISION EYEPIECE WITH NIGHT-VISION ONE
Release detent along arrow “Open” on
the sight body, turn it counter clockwise
and take it out.
In order to install the night-vision sight
align the bayonet groove in the eyepiece
body with the pin (or finger) on the inte-
rior surface of the sight body (its location
is marked with a dot on the body), insert
the eyepiece as far as it will go then turn it
clockwise. Make sure that the detent has
operated and the eyepiece won’t rotate
or getout. Replace the night-vision with
the day-vision one in a similar way.
