52 Passive Vehicle Mount Cradle
MX7 User’s Guide E-EQ-MX7OGWW-C

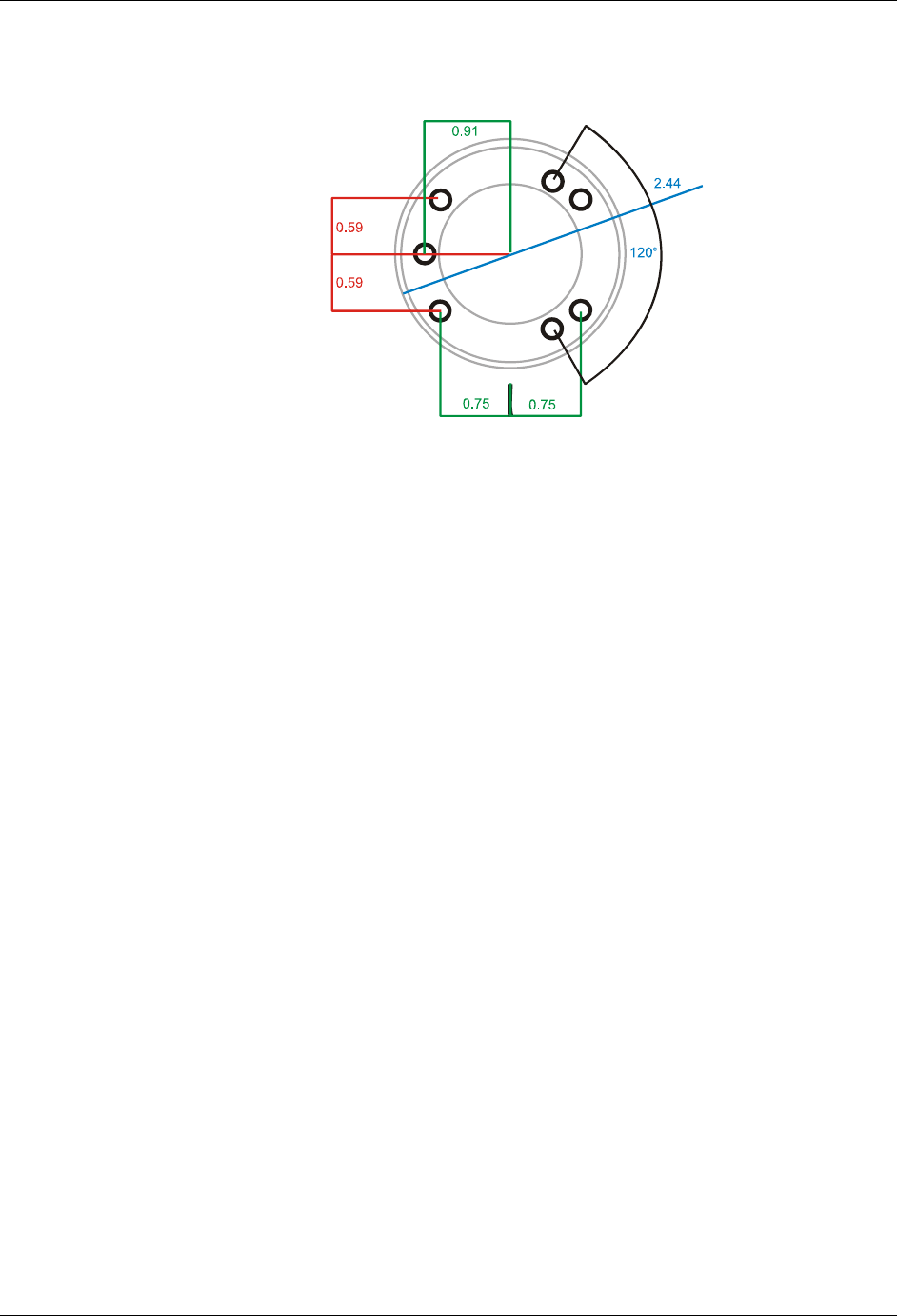

RAM Assembly Footprint
Not To Scale
Figure 36 RAM Assembly Footprint
Note: LXE does not supply the bolts or washers needed when mounting the cradle assembly to
the vehicle chassis. LXE recommends using bolts with a maximum 10/32” (0.3125)
diameter.
