ASSEMBLY INSTRUCTIONS
10
(48) Front Stand
( Wider )
(50) Rear Stand
( Narrower )
SLOTS
STEP 9

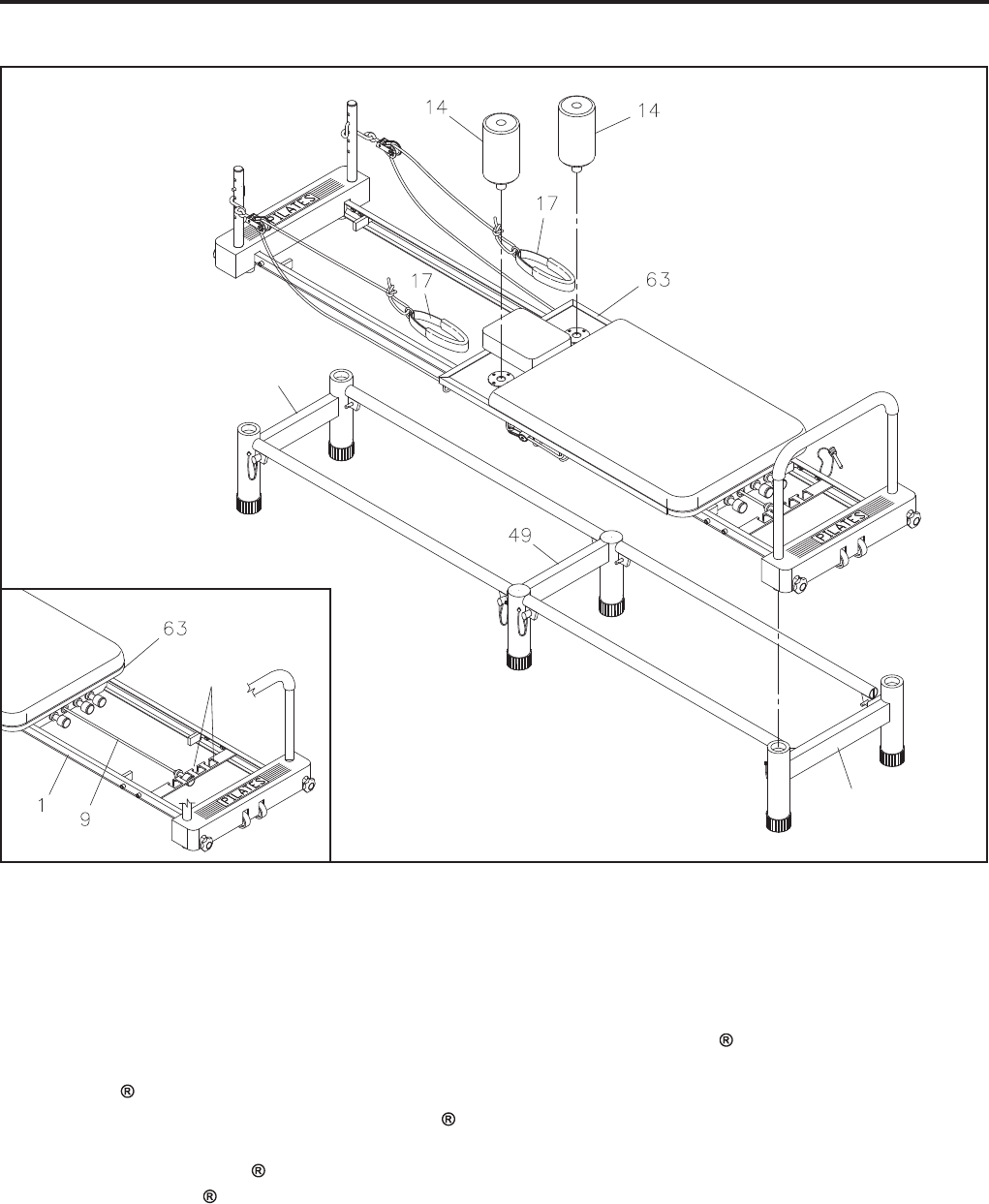

Insert the FOAM PAD ASSEMBLIES(14) into the holes located on the CARRIAGE(63). Place the HAND
STRAPS(17) onto the FOAM PAD ASSEMBLIES(14) for storage.
STEP 10
To prevent the CARRIAGE(63) from moving while placing the AeroPilates onto its Stand, attach one
of the TENSION CORDS(9) in the slots on the FRONT FRAME(1). Refer to the inset drawing. Place the
AeroPilates onto the Stand as shown in the illustration.
NOTE: The rubber feet of the AeroPilates must t into the FRONT STAND(48) and the REAR
STAND(50). The FRONT STAND(48) is wider than the REAR STAND(50). The Foot Rest end of
your AeroPilates
will t into the top of the FRONT STAND(48) and the Headrest end of your
AeroPilates
will t into the REAR STAND(50).
