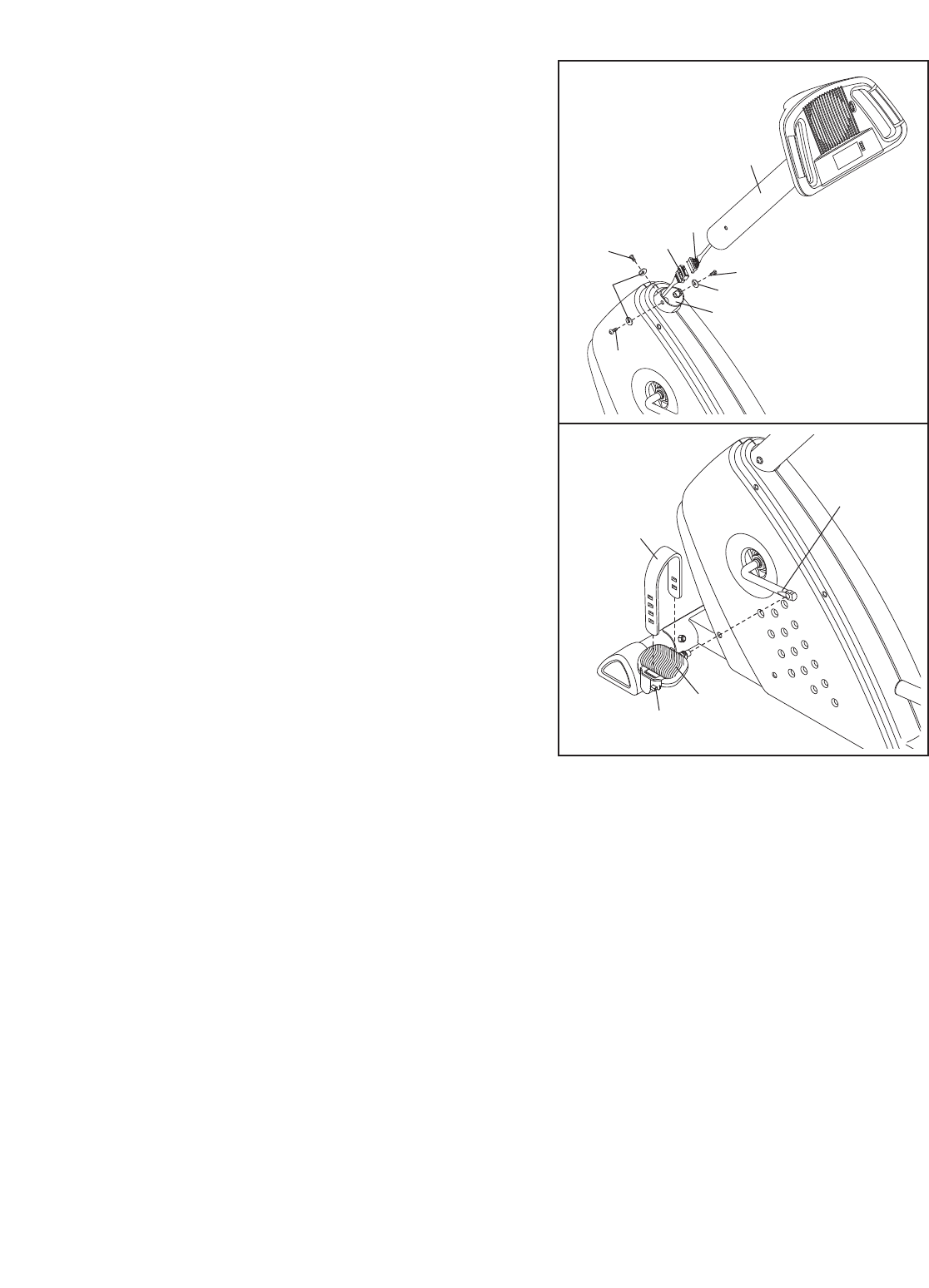

8. Connect the Upper Wire Harness (36) to the Lower
Wire Harness (65). Attach the Upright (13) to the
F
rame (1) with three M8 x 25mm Button Screws (33)
and three M8 Split Washers (59).
Be careful to avoid
p
inching the Wire Harnesses.
65
33
33
33
59
59
1
9. Identify the Left Pedal (24), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal
counterclockwise
into the left arm of the
Crank (31).
Tighten the Right Pedal (not shown)
clock
-
wise
into the right arm of the Crank. Important:
Tighten both Pedals as firmly as possible. After
using the exercise cycle for one week, retighten
the Pedals. For best performance, the Pedals must
be kept tightened.
Adjust the left Pedal Strap (25) to the desired position,
and press the end of the Pedal Strap onto the tab on
the Left Pedal (24). Adjust the right Pedal Strap (not
shown) in the same way.
10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over
. Place a mat beneath the exercise cycle to protect
the floor
.
